Cascade Elite 16x76
$62,500
or from $365/moIncludes standard regional delivery & installation
Key Features
Size and layout. The 16x76 designation is the nominal transport size in feet, which is where the 1,216 sq ft figure comes from (16 x 76). Finished floor area in any manufactured home is normally a little smaller than the nominal figure, because nominal width and length are measured over the eaves and include the towing hitch. Ask for the floor plan dimensions if you are laying out furniture to the inch.
Transport and siting. As a single-section home it travels in one piece at roughly 16 feet wide. Anything over the 8 ft 6 in standard legal load width needs a state oversize permit, and at 16 feet wide most states also require pilot or escort vehicles and restrict movement to daylight hours. Your site needs an approach the transporter can physically use: a firm, wide driveway, room to swing the home into position, and clearance from low branches and overhead utility lines.
Compliance. Like every home built to the federal HUD Code, this floor plan is designed to 24 CFR Part 3280. On delivery, check that the red HUD certification label is fixed to the exterior of the section and that the paper data plate inside the home lists the wind zone, roof load zone and thermal zone the unit was built for, and that those zones match the requirements where you are siting it.
Room Dimensions & Layout Schedule
| Room / Area | Dimensions (L × W) | Area (Sq Ft) | Features & Inclusions |
|---|---|---|---|

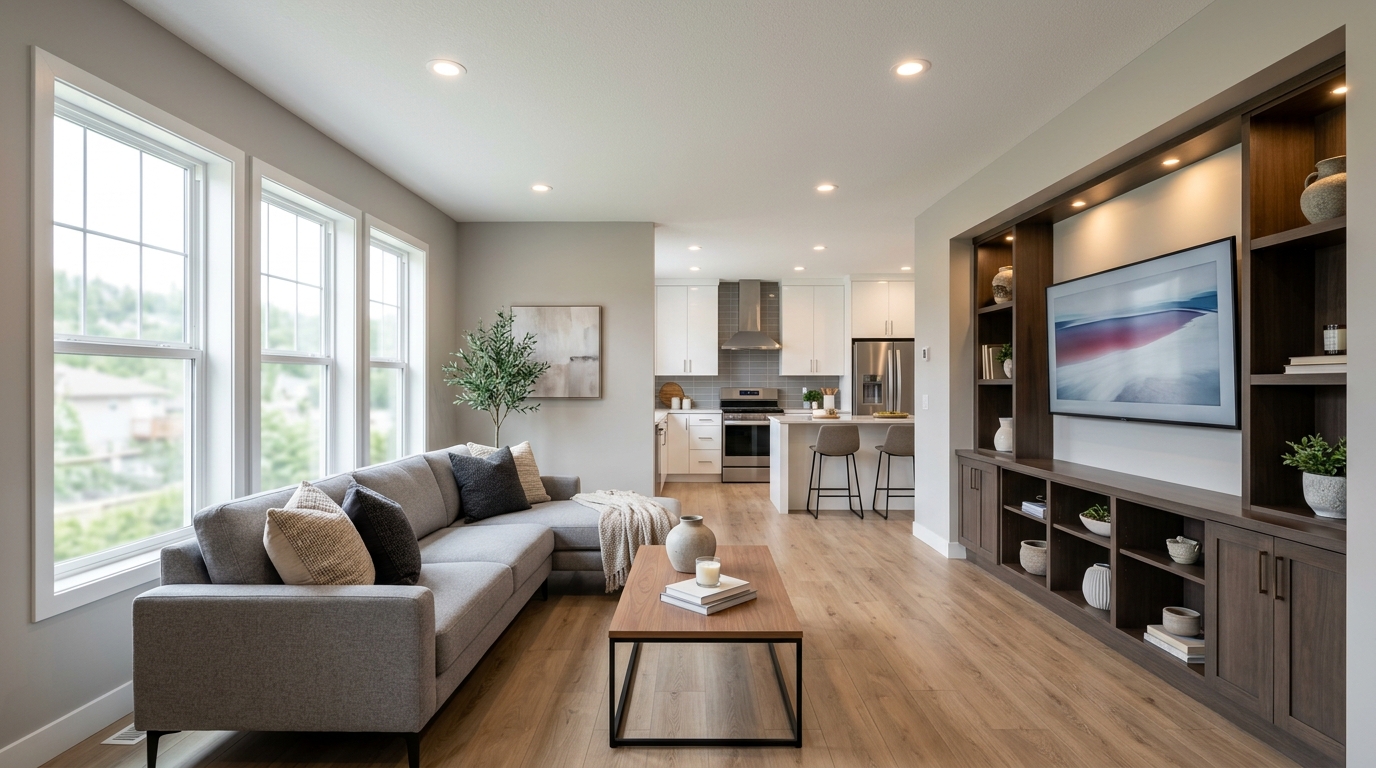

| Living Room | 14' 6" x 16' 8" | 241.7 sq ft | Open great room with vaulted ceiling and entertainment wall |

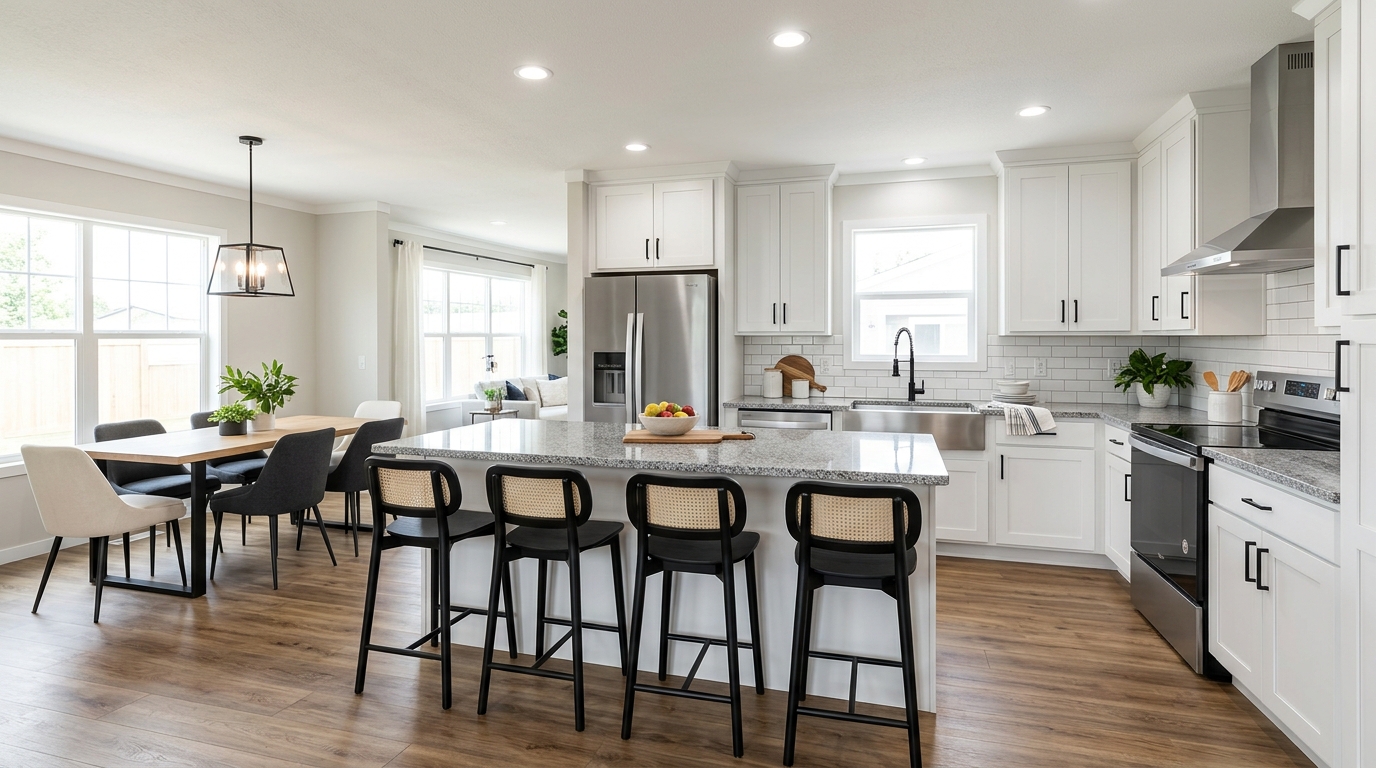

| Kitchen & Dining | 14' 6" x 14' 0" | 203.0 sq ft | Solid-surface counters, breakfast bar, stainless appliance package |

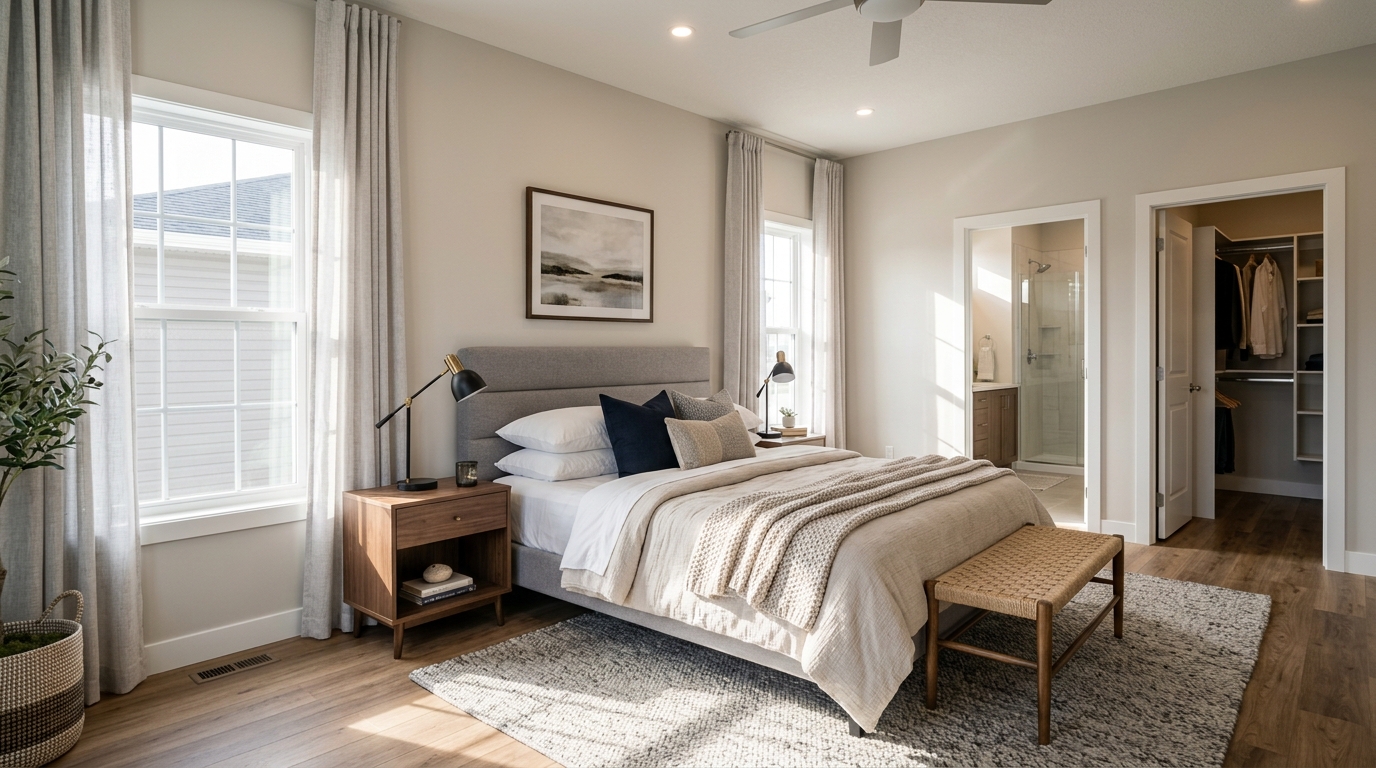

| Master Suite | 14' 6" x 13' 6" | 195.8 sq ft | Spacious master bedroom with oversized walk-in closet |

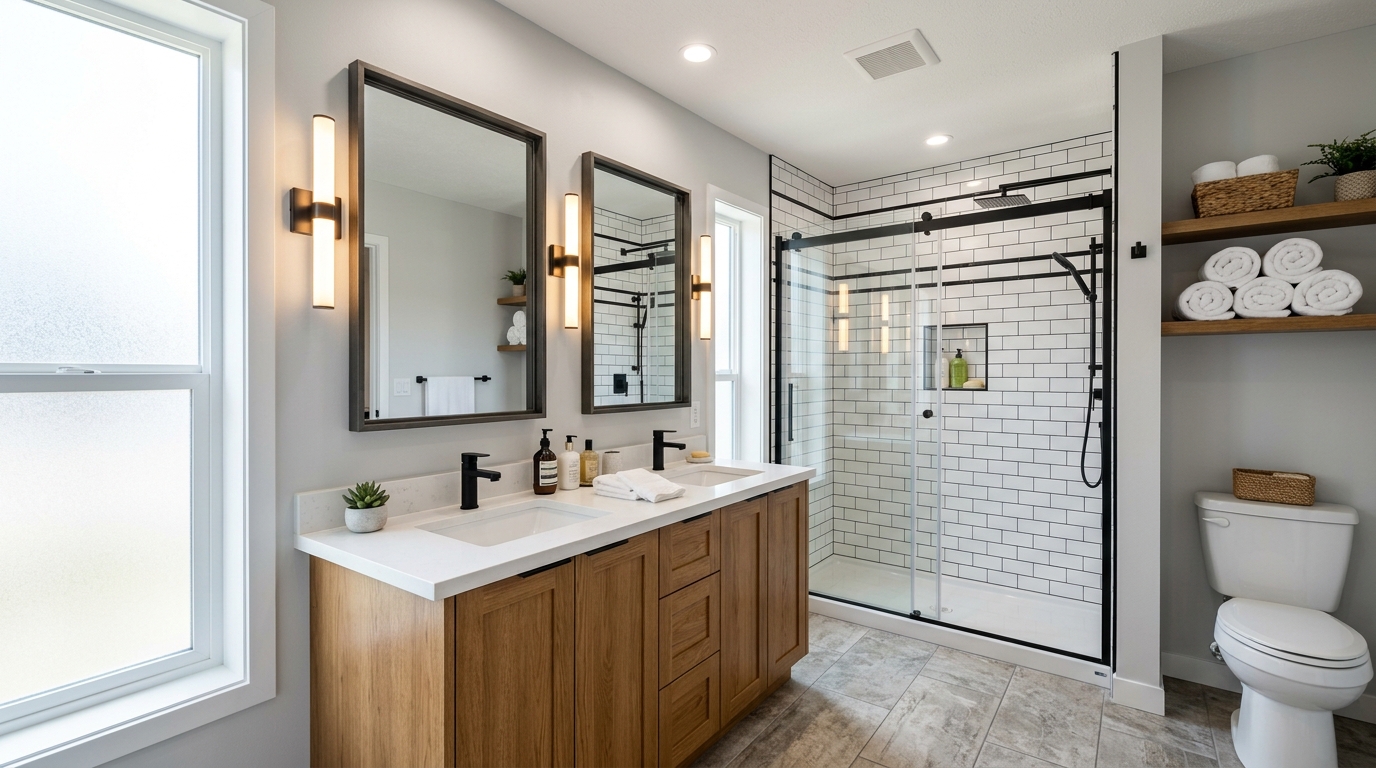

| Master Glamour Bath | 10' 0" x 8' 6" | 85.0 sq ft | Corner garden soaking tub, separate 48-inch walk-in shower & dual sinks |
| Master Walk-In Closet | 7' 6" x 5' 6" | 41.3 sq ft | Expansive wardrobe closet with built-in organizer |
| Bedroom 2 | 10' 8" x 11' 4" | 120.9 sq ft | Secondary bedroom with walk-in closet |
| Bedroom 3 | 10' 8" x 11' 4" | 120.9 sq ft | Third bedroom with large double-hung window |
| Guest Bathroom 2 | 8' 6" x 5' 0" | 42.5 sq ft | Full tub/shower combo with upgraded vanity |
| Dedicated Laundry Room | 7' 0" x 5' 6" | 38.5 sq ft | Full laundry room with overhead cabinets & rear exterior door |
| Hallways & Closets | Circulation | 58.4 sq ft | Linen closet and central passage |
Financing & Deposit Calculator
Customize your down payment, loan term, and interest rate for the Cascade Elite 16x76.

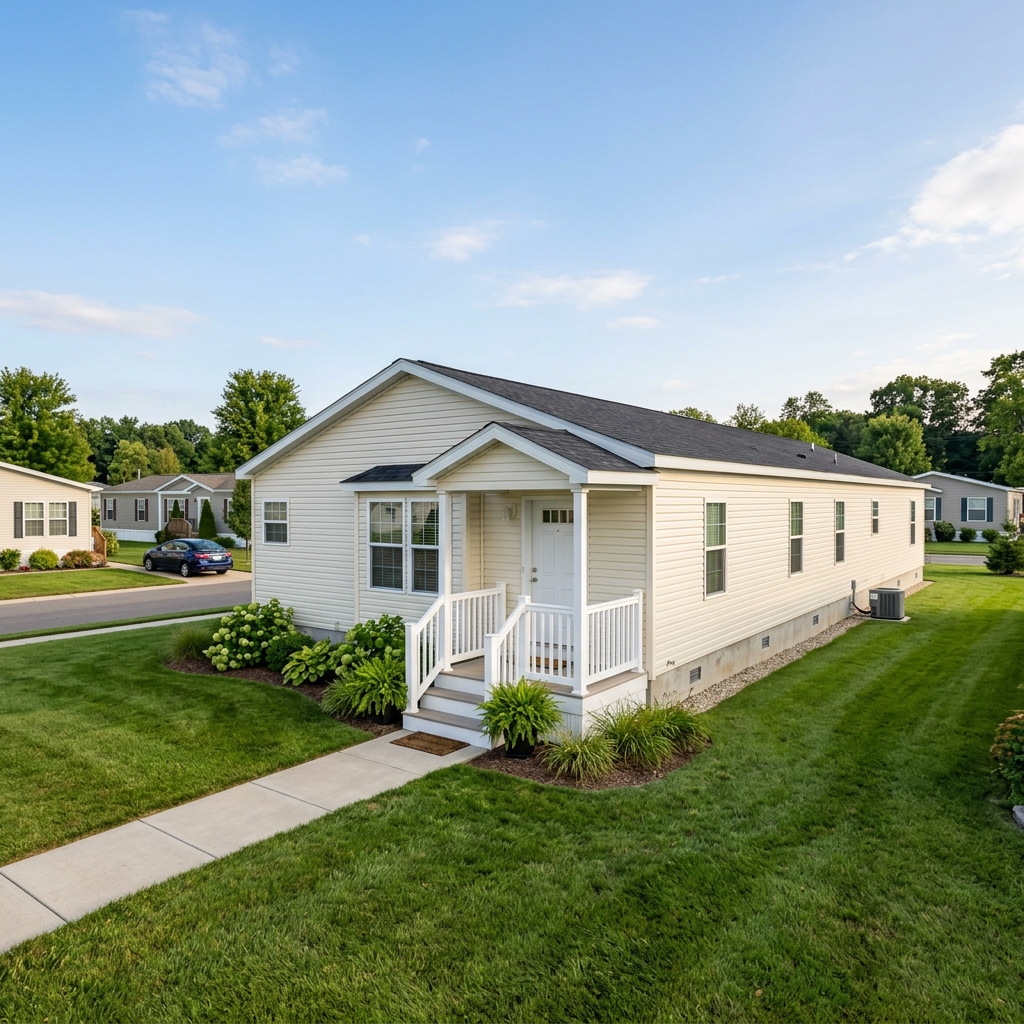

Exterior Elevations & Customization Options
Every home is custom manufactured to order. If you prefer a clean, contemporary appearance rather than a rustic cabin or traditional look, we offer multiple exterior and interior finish packages:
Clean Architectural Look
Smooth horizontal lap siding in slate grey, arctic white, or charcoal; low-profile black window frames; modern full-lite front door with frosted vertical glass inserts; optional black standing-seam metal accents.
Suburban Neighborhood Style
Horizontal vinyl siding with decorative board-and-batten gables; white window surrounds; classic louvered shutters; 6-panel fiberglass front door with transom window.
Timber & Cabin Styling
Woodgrain textured siding in cedar tones; rough-sawn cedar porch posts with black metal bracket accents; dark earth-tone architectural shingles.
Interior Finish Packages & Floor Plan Customization
- • Builder Basic: Smooth drywall ready for custom painting, durable vinyl flooring, flat-panel shaker cabinets, roll-edge laminate counters. Perfect for homeowners seeking lower cost or planning DIY cosmetic upgrades.
- • Signature Luxury: Solid quartz/granite countertops, undermount farmhouse apron sink, soft-close dovetailed cabinets, Luxury Vinyl Plank (LVP) throughout, ceramic subway tile backsplashes, and tiled walk-in master shower.
- • Custom Floor Plans: Interior non-load-bearing walls can be adjusted prior to fabrication (e.g. combining bedrooms into larger suites, shifting exterior doors, or adding sliding glass patio doors).
Engineering & Climate Specifications
| Home type | Single Wide (single-section) manufactured home |
|---|---|
| Model year | 2026 |
| Nominal transport dimensions | 16 ft × 76 ft (measured over the eaves, including the hitch) |
| Box & Finished Width | 15' 2" box width | 15' 10" over eaves |
| Transported as | 1 section of approximately 16 ft × 76 ft |
| Floor area | 1,216 sq ft nominal (1148 sq ft finished interior) |
| Bedrooms / bathrooms | 3 bedrooms, 2 bathrooms |
| Roof Snow Load Options | Standard 20 PSF | Engineered 30 PSF (Middle Snow) & 40 PSF (Heavy Snow for Utah, Montana, Wyoming, Colorado) |
| Thermal / Insulation Zone | Zone 1/2 Standard | Thermal Zone 3 Northern Package (2x6 Walls, R-21 wall, R-38 ceiling, R-22 floor, Argon Low-E windows) |
| Construction standard | Federal HUD Code — Manufactured Home Construction and Safety Standards, 24 CFR Part 3280 |
| Foundation Compatibility | Both Pier-and-Anchor & Permanent Foundations (Crawlspace Stem Wall / Basement for FHA/VA 30-Year Real Property Financing) |
| Certification documents | 1 exterior HUD certification label, plus the interior data plate listing wind zone, roof load zone and thermal zone |
Transport & Siting Notes for This Plan
This home travels as a single section approximately 16 feet wide. The standard legal load width on US highways is 8 feet 6 inches, so the move requires an oversize permit from every state on the route. At this width most states also require pilot or escort vehicles and restrict movement to daylight hours.
At 76 feet long, turning radius matters at every corner between the highway and your pad, and the pad itself needs to be level and compacted across the full 16-foot width with working room at the perimeter. Read more about route surveys, permits and site access for delivery.
As a single-section home there is no mating line and no utility crossover to complete on site, which makes set-up simpler than for a multi-section home. Piers are placed on footings beneath the steel chassis beams, with ground anchors and tie-down straps sized to the wind zone on the data plate.
Footings must bear on undisturbed soil at or below the local frost depth, and the finished grade should fall away from the home so surface water does not collect beneath it. See what site preparation and installation involve, or check the FAQ on zoning, permits and financing before committing to a plan.
Interested in the Cascade Elite 16x76?
Request an itemized delivered-and-installed quote for your exact property, custom floor plan modifications, or foundation engineering guidance.
