Summit Series 16x70
$55,800
or from $326/moIncludes standard regional delivery & installation
Key Features
Size and layout. The nominal 1,120 sq ft is 16 feet by 70 feet, measured over the eaves and including the hitch, so the finished floor area is slightly smaller. Raised ceilings in a single-section home change the roof profile, which is worth mentioning to your transporter when overhead clearance on the route is being surveyed.
Insulation and thermal zone. The HUD Code divides the country into three thermal zones, and a home is built to the insulation values required for the zone it is intended for. The zone the home was built to is printed on the data plate. If you are siting a home in a colder zone than the one it was manufactured for, that is a compliance question to resolve before purchase, not after delivery.
Transport and siting. The home moves as one 16-foot-wide oversize load, which requires state permits and, in most states, pilot vehicles and daylight-only travel. Site access needs a firm approach, turning room, and clearance from low wires and branches.
Compliance. Check the exterior red HUD certification label and the interior data plate on delivery, and confirm the wind zone and roof load zone match your location's requirements.
Room Dimensions & Layout Schedule
| Room / Area | Dimensions (L × W) | Area (Sq Ft) | Features & Inclusions |
|---|---|---|---|

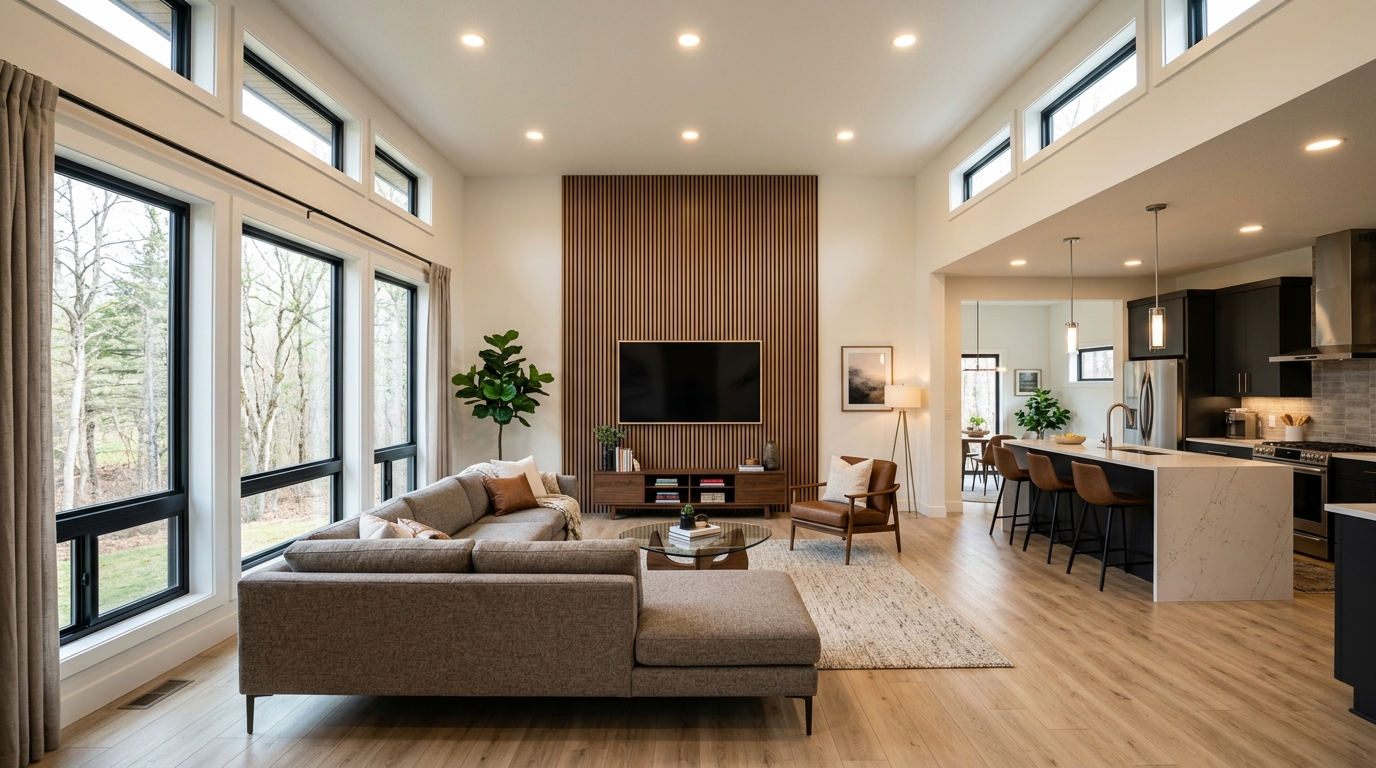

| Living Room | 14' 6" x 15' 6" | 224.8 sq ft | Expansive living room with 9-foot ceilings and modern transom windows |

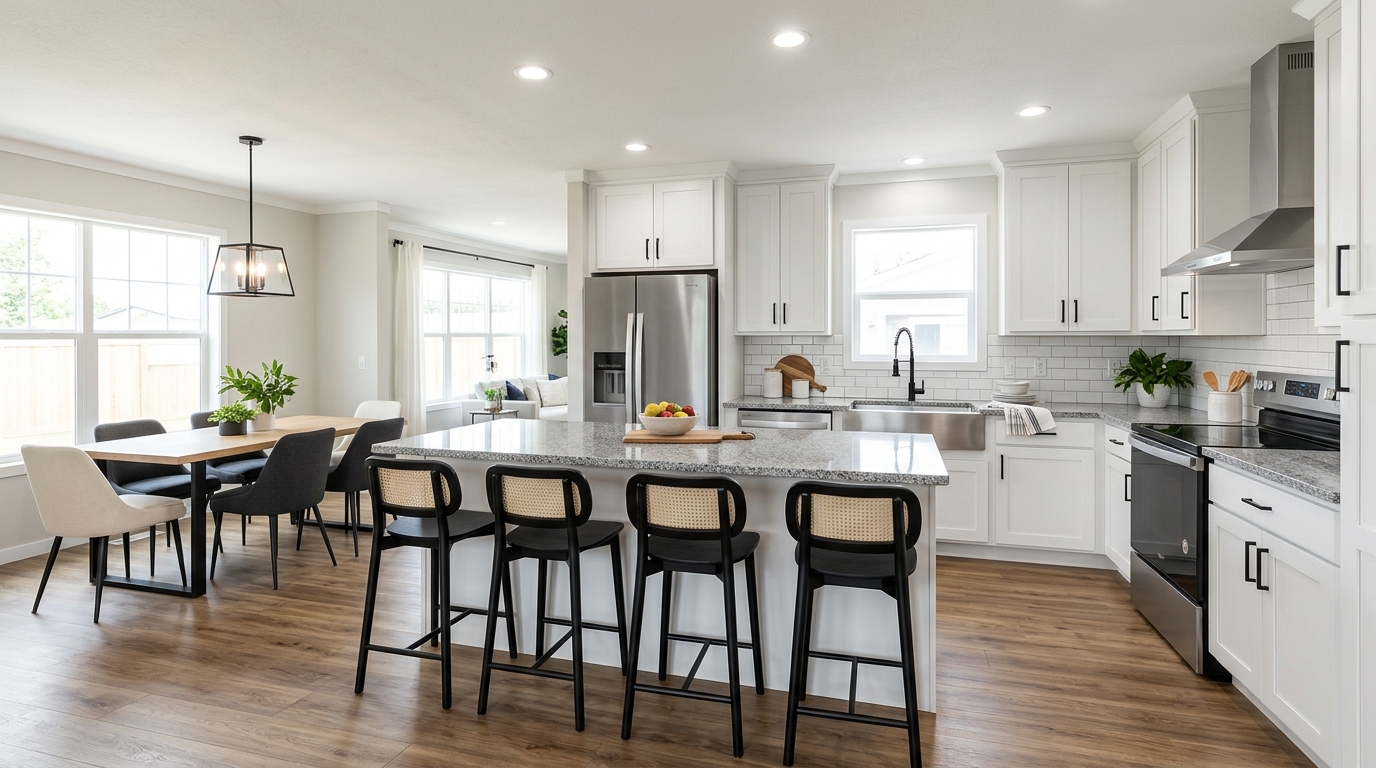

| Kitchen & Dining | 14' 6" x 13' 0" | 188.5 sq ft | Modern kitchen with center food prep island & breakfast bar |

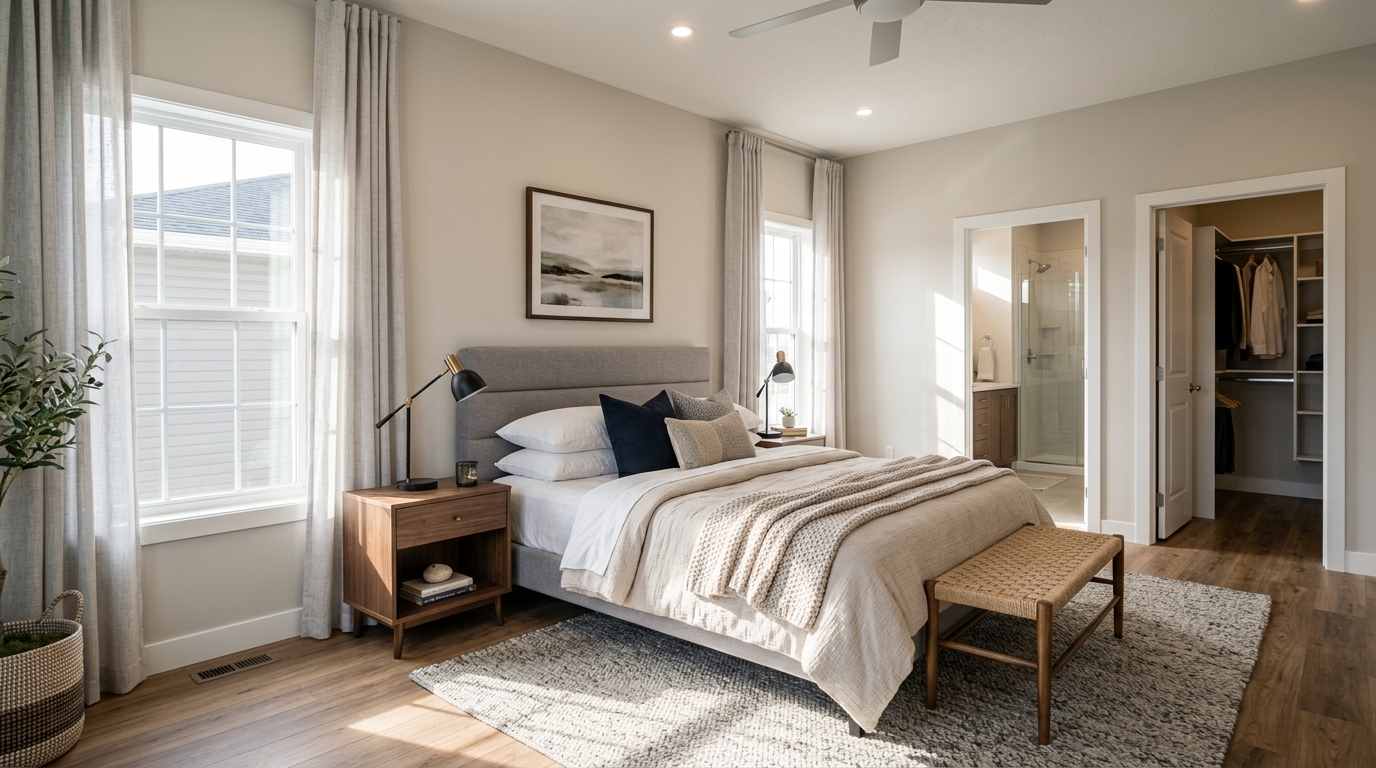

| Master Bedroom | 14' 6" x 12' 6" | 181.3 sq ft | Private rear master retreat with walk-in closet |

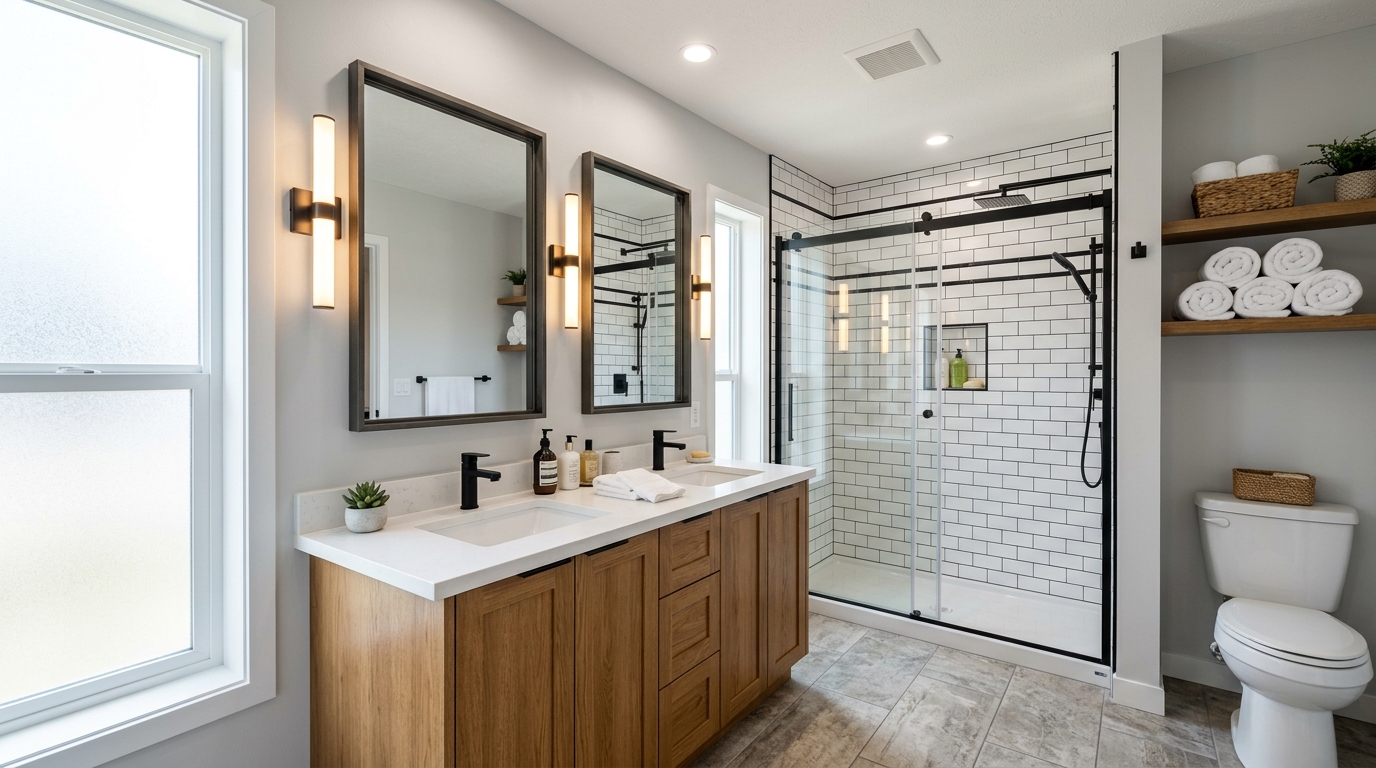

| Master Ensuite Bath | 8' 6" x 6' 0" | 51.0 sq ft | Dual vanities, 48-inch walk-in shower, water-saving commode |
| Master Walk-In Closet | 6' 0" x 5' 6" | 33.0 sq ft | Walk-in closet with multi-tier organization shelves |
| Bedroom 2 | 10' 2" x 11' 0" | 111.8 sq ft | Middle guest bedroom with large closet and tall window |
| Bedroom 3 | 10' 2" x 11' 0" | 111.8 sq ft | Front bedroom / home office with 9ft ceiling and closet |
| Guest Bathroom 2 | 8' 6" x 5' 0" | 42.5 sq ft | Full bathroom with fiberglass tub/shower and vanity |
| Dedicated Laundry Room | 6' 0" x 5' 6" | 33.0 sq ft | Enclosed utility room with side exterior access door |
| Hallways & Storage | Circulation | 78.3 sq ft | Hallway with coat closet and linen cabinet |
Financing & Deposit Calculator
Customize your down payment, loan term, and interest rate for the Summit Series 16x70.

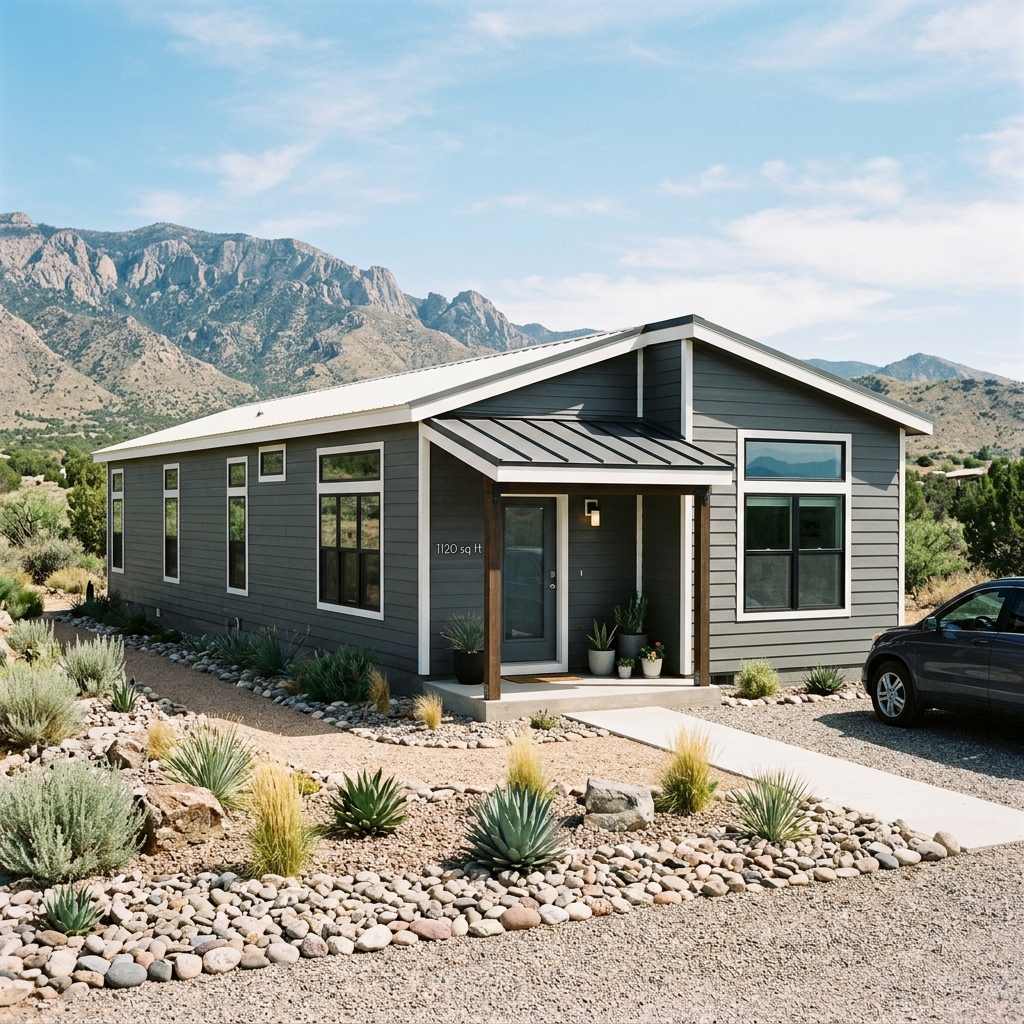

Exterior Elevations & Customization Options
Every home is custom manufactured to order. If you prefer a clean, contemporary appearance rather than a rustic cabin or traditional look, we offer multiple exterior and interior finish packages:
Clean Architectural Look
Smooth horizontal lap siding in slate grey, arctic white, or charcoal; low-profile black window frames; modern full-lite front door with frosted vertical glass inserts; optional black standing-seam metal accents.
Suburban Neighborhood Style
Horizontal vinyl siding with decorative board-and-batten gables; white window surrounds; classic louvered shutters; 6-panel fiberglass front door with transom window.
Timber & Cabin Styling
Woodgrain textured siding in cedar tones; rough-sawn cedar porch posts with black metal bracket accents; dark earth-tone architectural shingles.
Interior Finish Packages & Floor Plan Customization
- • Builder Basic: Smooth drywall ready for custom painting, durable vinyl flooring, flat-panel shaker cabinets, roll-edge laminate counters. Perfect for homeowners seeking lower cost or planning DIY cosmetic upgrades.
- • Signature Luxury: Solid quartz/granite countertops, undermount farmhouse apron sink, soft-close dovetailed cabinets, Luxury Vinyl Plank (LVP) throughout, ceramic subway tile backsplashes, and tiled walk-in master shower.
- • Custom Floor Plans: Interior non-load-bearing walls can be adjusted prior to fabrication (e.g. combining bedrooms into larger suites, shifting exterior doors, or adding sliding glass patio doors).
Engineering & Climate Specifications
| Home type | Single Wide (single-section) manufactured home |
|---|---|
| Model year | 2026 |
| Nominal transport dimensions | 16 ft × 70 ft (measured over the eaves, including the hitch) |
| Box & Finished Width | 15' 2" box width | 15' 10" over eaves |
| Transported as | 1 section of approximately 16 ft × 70 ft |
| Floor area | 1,120 sq ft nominal (1056 sq ft finished interior) |
| Bedrooms / bathrooms | 3 bedrooms, 2 bathrooms |
| Roof Snow Load Options | Standard 20 PSF | Engineered 30 PSF (Middle Snow) & 40 PSF (Heavy Snow for Utah, Montana, Wyoming, Colorado) |
| Thermal / Insulation Zone | Zone 1/2 Standard | Thermal Zone 3 Northern Package (2x6 Walls, R-21 wall, R-38 ceiling, R-22 floor, Argon Low-E windows) |
| Construction standard | Federal HUD Code — Manufactured Home Construction and Safety Standards, 24 CFR Part 3280 |
| Foundation Compatibility | Both Pier-and-Anchor & Permanent Foundations (Crawlspace Stem Wall / Basement for FHA/VA 30-Year Real Property Financing) |
| Certification documents | 1 exterior HUD certification label, plus the interior data plate listing wind zone, roof load zone and thermal zone |
Transport & Siting Notes for This Plan
This home travels as a single section approximately 16 feet wide. The standard legal load width on US highways is 8 feet 6 inches, so the move requires an oversize permit from every state on the route. At this width most states also require pilot or escort vehicles and restrict movement to daylight hours.
At 70 feet long, turning radius matters at every corner between the highway and your pad, and the pad itself needs to be level and compacted across the full 16-foot width with working room at the perimeter. Read more about route surveys, permits and site access for delivery.
As a single-section home there is no mating line and no utility crossover to complete on site, which makes set-up simpler than for a multi-section home. Piers are placed on footings beneath the steel chassis beams, with ground anchors and tie-down straps sized to the wind zone on the data plate.
Footings must bear on undisturbed soil at or below the local frost depth, and the finished grade should fall away from the home so surface water does not collect beneath it. See what site preparation and installation involve, or check the FAQ on zoning, permits and financing before committing to a plan.
Interested in the Summit Series 16x70?
Request an itemized delivered-and-installed quote for your exact property, custom floor plan modifications, or foundation engineering guidance.
