Dakota Ranch 28x64
$119,500
or from $698/moIncludes standard regional delivery & installation
Key Features
Size and layout. The nominal 1,792 sq ft is 28 feet by 64 feet, delivered as two 14-by-64 sections joined on site along the mating line. At 64 feet these are among the longer sections to transport, which affects turning radius on the route and the manoeuvring room needed at the site.
Decks and door openings. Large sliding glass doors and any attached deck are worth planning early. A deck attached to a manufactured home normally needs its own permitted footings and must not rely on the home's chassis for support, and every exterior door needs compliant steps and a landing.
Transport and siting. Two 14-foot-wide oversize loads mean permits in every state on the route and, in most states, escorts for each move. The pad must be level and compacted across the full 28-foot width with working room at the perimeter, and the finished grade should slope away from the home.
Compliance. Each section carries its own HUD certification label. The data plate inside the home lists the wind zone, roof load zone and thermal zone the unit was designed for; confirm these match local requirements before the home is set.
Room Dimensions & Layout Schedule
| Room / Area | Dimensions (L × W) | Area (Sq Ft) | Features & Inclusions |
|---|---|---|---|

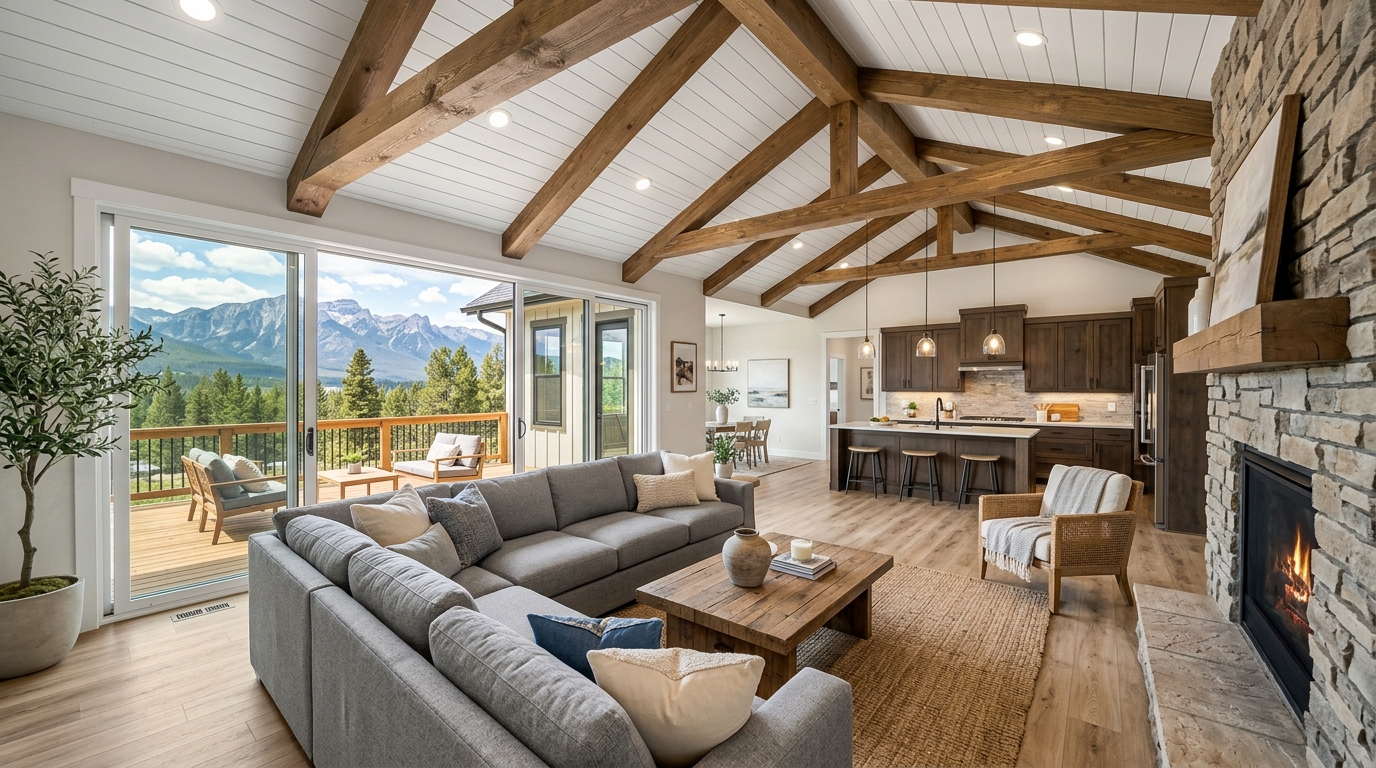

| Sprawling Great Room | 22' 0" x 16' 6" | 363.0 sq ft | Massive central gathering room with sliding glass door to deck area |

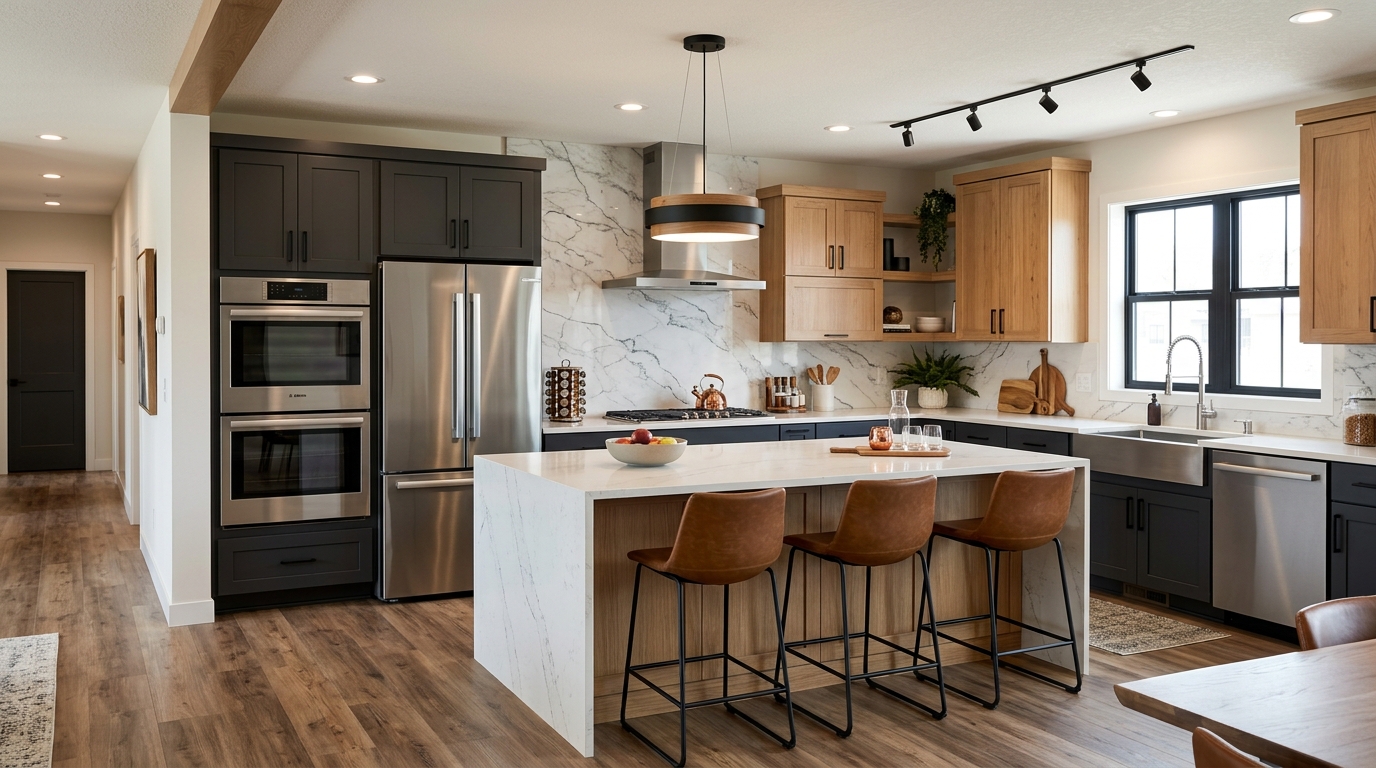

| Chef's Kitchen & 10ft Island | 16' 6" x 14' 6" | 239.3 sq ft | 10-foot granite-topped island, double oven, commercial style faucet & wrap cabinets |
| Walk-In Pantry | 6' 6" x 5' 0" | 32.5 sq ft | Large walk-in pantry with solid wood shelving |
| Dining Room | 14' 0" x 11' 6" | 161.0 sq ft | Dedicated dining space with panoramic window wall |

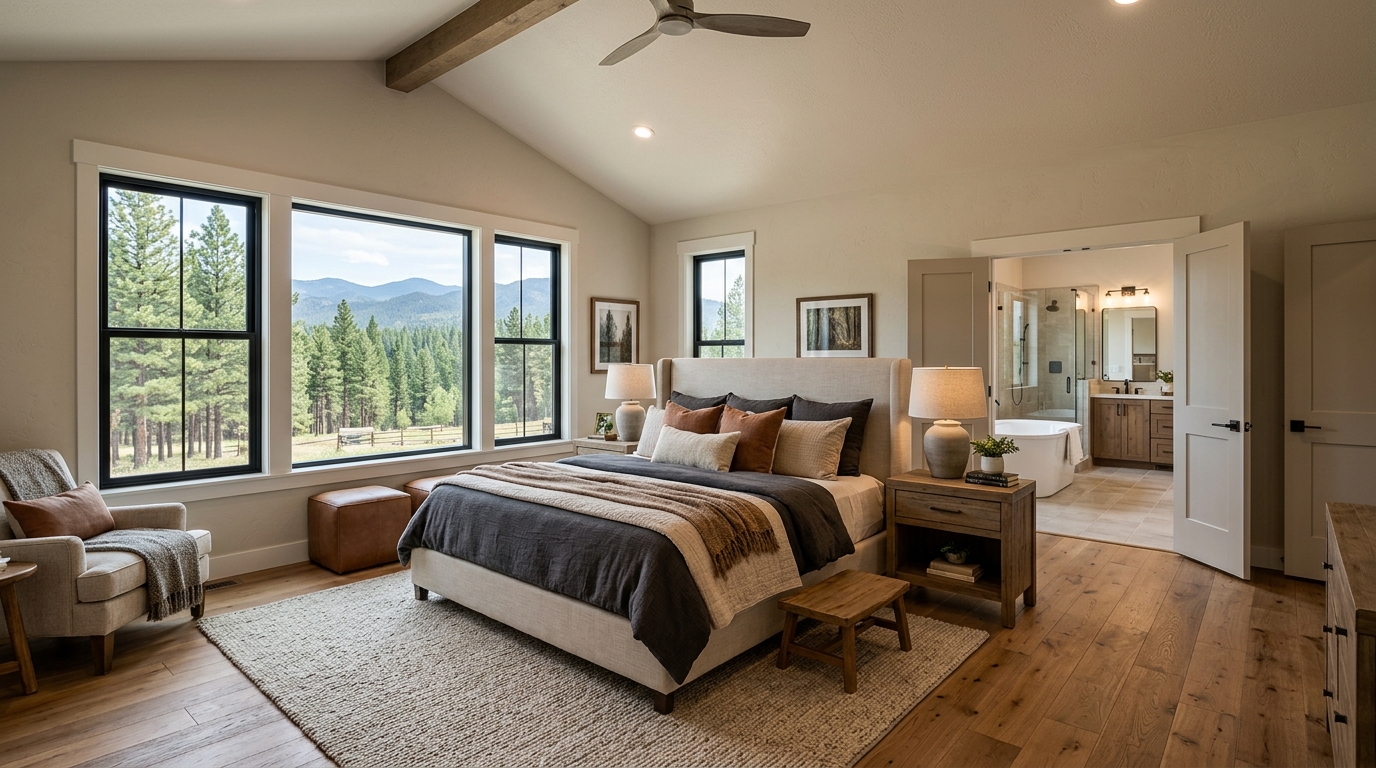

| Master Suite (West Wing) | 14' 6" x 17' 0" | 246.5 sq ft | Sprawling master bedroom with double-door entry |

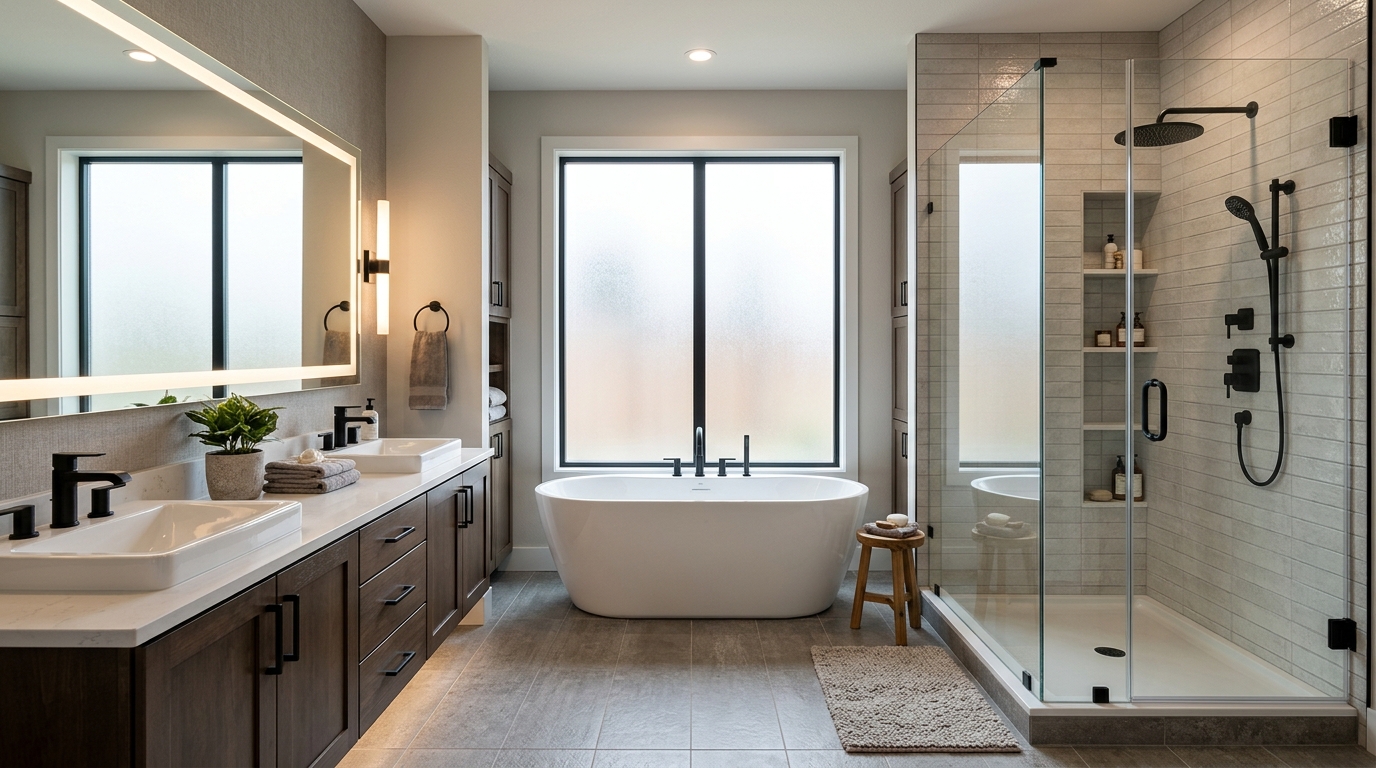

| Spa Master Bath | 12' 6" x 10' 0" | 125.0 sq ft | Freestanding soaking tub, tiled 60-inch walk-in shower, twin quartz vanities |
| Master Walk-In Closet | 10' 0" x 7' 6" | 75.0 sq ft | Enormous walk-in closet with built-in dresser island option |
| Bedroom 2 (East Wing) | 12' 0" x 11' 6" | 138.0 sq ft | Guest bedroom with walk-in closet |
| Bedroom 3 (East Wing) | 12' 0" x 11' 6" | 138.0 sq ft | Bedroom with double wardrobe closet |
| Bedroom 4 (East Wing) | 12' 0" x 11' 6" | 138.0 sq ft | Bedroom or executive home office |
| Guest Bathroom 2 | 9' 0" x 5' 6" | 49.5 sq ft | Full bathroom with dual sinks and tub/shower combo |
| Powder Room (Half Bath) | 5' 6" x 5' 0" | 27.5 sq ft | Half bath located near mud room and great room |
| Mud Room & Laundry | 10' 6" x 8' 0" | 84.0 sq ft | Mud room with coat bench, utility sink, washer/dryer hookups & side door |
| Foyers & Hallways | Circulation | 187.7 sq ft | Grand entry foyer and East wing hallway |
Financing & Deposit Calculator
Customize your down payment, loan term, and interest rate for the Dakota Ranch 28x64.

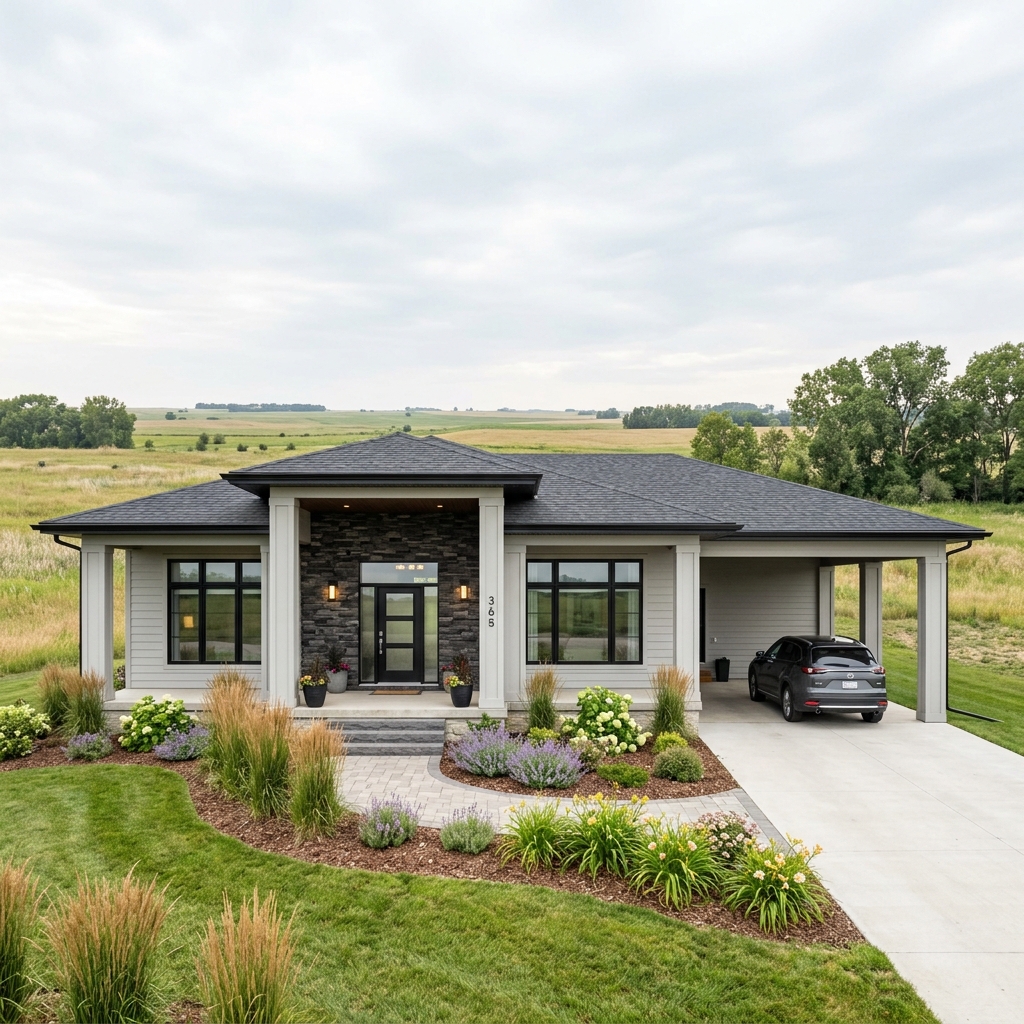

Exterior Elevations & Customization Options
Every home is custom manufactured to order. If you prefer a clean, contemporary appearance rather than a rustic cabin or traditional look, we offer multiple exterior and interior finish packages:
Clean Architectural Look
Smooth horizontal lap siding in slate grey, arctic white, or charcoal; low-profile black window frames; modern full-lite front door with frosted vertical glass inserts; optional black standing-seam metal accents.
Suburban Neighborhood Style
Horizontal vinyl siding with decorative board-and-batten gables; white window surrounds; classic louvered shutters; 6-panel fiberglass front door with transom window.
Timber & Cabin Styling
Woodgrain textured siding in cedar tones; rough-sawn cedar porch posts with black metal bracket accents; dark earth-tone architectural shingles.
Interior Finish Packages & Floor Plan Customization
- • Builder Basic: Smooth drywall ready for custom painting, durable vinyl flooring, flat-panel shaker cabinets, roll-edge laminate counters. Perfect for homeowners seeking lower cost or planning DIY cosmetic upgrades.
- • Signature Luxury: Solid quartz/granite countertops, undermount farmhouse apron sink, soft-close dovetailed cabinets, Luxury Vinyl Plank (LVP) throughout, ceramic subway tile backsplashes, and tiled walk-in master shower.
- • Custom Floor Plans: Interior non-load-bearing walls can be adjusted prior to fabrication (e.g. combining bedrooms into larger suites, shifting exterior doors, or adding sliding glass patio doors).
Engineering & Climate Specifications
| Home type | Double Wide (2-section) manufactured home |
|---|---|
| Model year | 2026 |
| Nominal transport dimensions | 28 ft × 64 ft (measured over the eaves, including the hitch) |
| Box & Finished Width | 27' 4" (Two 13' 8" sections joined) box width | 28' 0" over eaves |
| Transported as | 2 sections of approximately 14 ft × 64 ft |
| Floor area | 1,792 sq ft nominal (1705 sq ft finished interior) |
| Bedrooms / bathrooms | 4 bedrooms, 2.5 bathrooms |
| Roof Snow Load Options | Standard 20 PSF | Engineered 30 PSF (Middle Snow) & 40 PSF (Heavy Snow for Utah, Montana, Wyoming, Colorado) |
| Thermal / Insulation Zone | Zone 1/2 Standard | Thermal Zone 3 Northern Package (2x6 Walls, R-21 wall, R-38 ceiling, R-22 floor, Argon Low-E windows) |
| Construction standard | Federal HUD Code — Manufactured Home Construction and Safety Standards, 24 CFR Part 3280 |
| Foundation Compatibility | Both Pier-and-Anchor & Permanent Foundations (Crawlspace Stem Wall / Basement for FHA/VA 30-Year Real Property Financing) |
| Certification documents | 2 exterior HUD certification labels (one per section), plus the interior data plate listing wind zone, roof load zone and thermal zone |
Transport & Siting Notes for This Plan
This home travels as 2 sections of approximately 14 feet wide each. The standard legal load width on US highways is 8 feet 6 inches, so each move requires an oversize permit from every state on the route. At this width most states also require pilot or escort vehicles and restrict movement to daylight hours. Two sections means two permitted moves and two sets of escort arrangements.
At 64 feet long, turning radius matters at every corner between the highway and your pad, and the pad itself needs to be level and compacted across the full 28-foot width with working room at the perimeter. Read more about route surveys, permits and site access for delivery.
As a multi-section home, the halves are joined on site along the mating line. That wall is structural, so the pier layout beneath it follows the manufacturer's installation drawings, and the heating and cooling duct, water, drain and electrical crossovers between the halves are completed during set-up. Those crossovers should be supported, insulated and sealed before the skirting closes in.
Footings must bear on undisturbed soil at or below the local frost depth, and the finished grade should fall away from the home so surface water does not collect beneath it. See what site preparation and installation involve, or check the FAQ on zoning, permits and financing before committing to a plan.
Interested in the Dakota Ranch 28x64?
Request an itemized delivered-and-installed quote for your exact property, custom floor plan modifications, or foundation engineering guidance.
