Monarch Estate 32x60
$139,900
or from $817/moIncludes standard regional delivery & installation
Key Features
Size and layout. A 32x60 is built as two 16-by-60 sections joined on site. Sixteen-foot sections give noticeably wider rooms than the 14-foot sections used in most 28-foot-wide homes, which is where the extra 240 square feet over a 28x60 comes from.
Transport and siting. Two 16-foot-wide loads are at the upper end of routine oversize transport. Wider loads generally mean more escort vehicles, tighter restrictions on when the load may move, and more routes that are simply unusable. A route survey and permit review should happen before you commit to a delivery date, and the site needs a genuinely large working area: a level, compacted pad across the full 32-foot width, plus room for the toter, crane or jacking equipment used to position and join the halves.
Foundation and compliance. A home of this size and value is frequently placed on a permanent perimeter foundation, which is also what most lenders require before the home can be titled and financed as real property rather than as personal property. Each section carries its own HUD certification label, and the data plate lists the wind zone, roof load zone and thermal zone the unit was built to.
Room Dimensions & Layout Schedule
| Room / Area | Dimensions (L × W) | Area (Sq Ft) | Features & Inclusions |
|---|---|---|---|
| Formal Foyer Entry | 8' 0" x 7' 0" | 56.0 sq ft | Grand entry foyer with tile flooring and double coat closet |

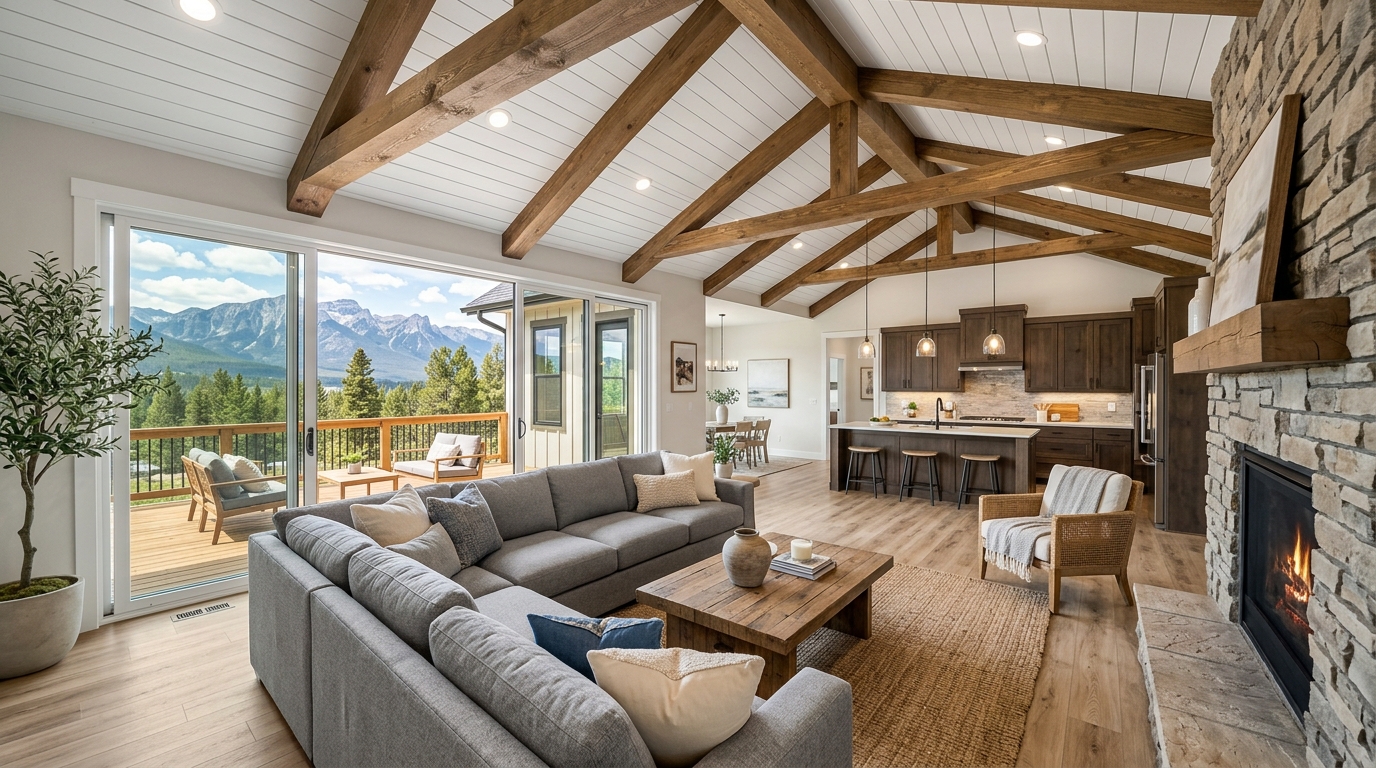

| Formal Living Room | 18' 0" x 15' 6" | 279.0 sq ft | Spacious front formal living room with architectural crown molding |

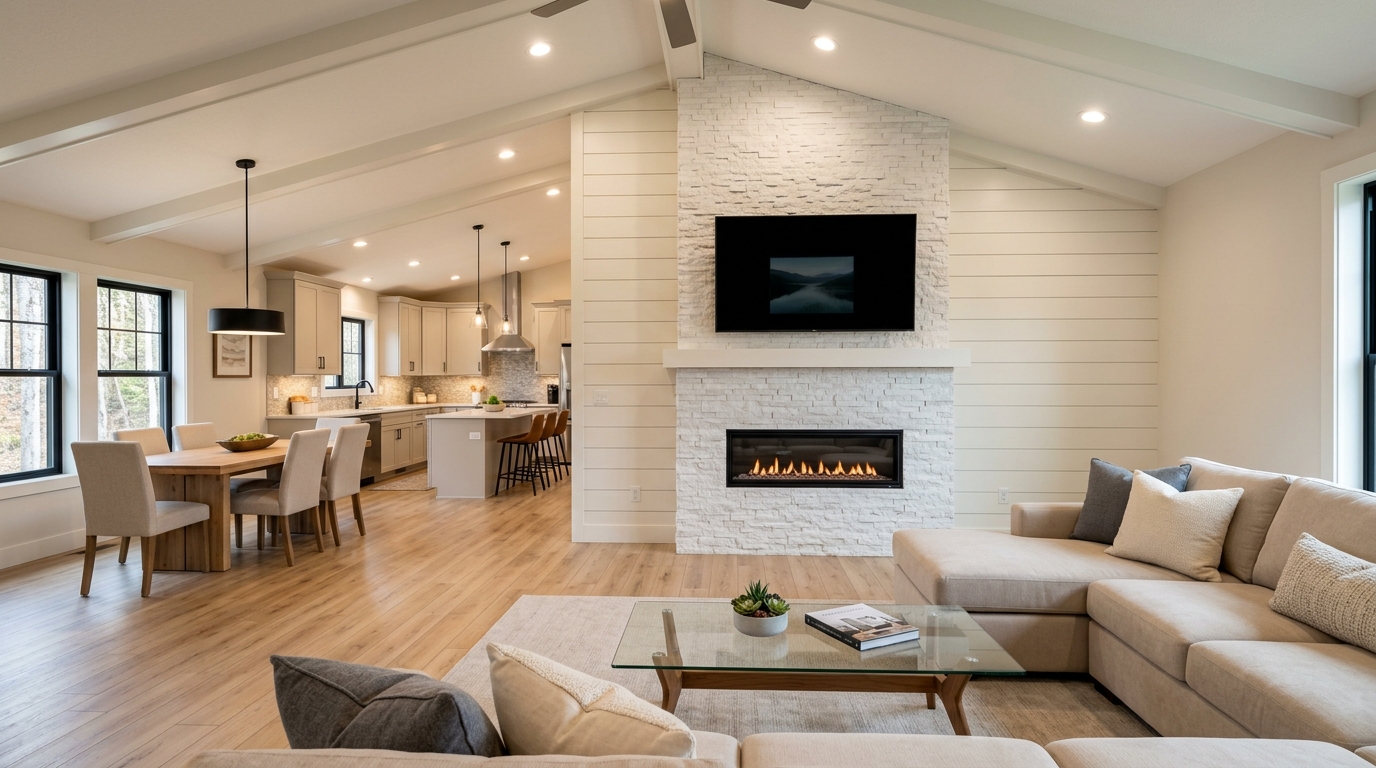

| Separate Family Room | 17' 6" x 15' 0" | 262.5 sq ft | Rear family gathering room with stone accent fireplace & patio slider |

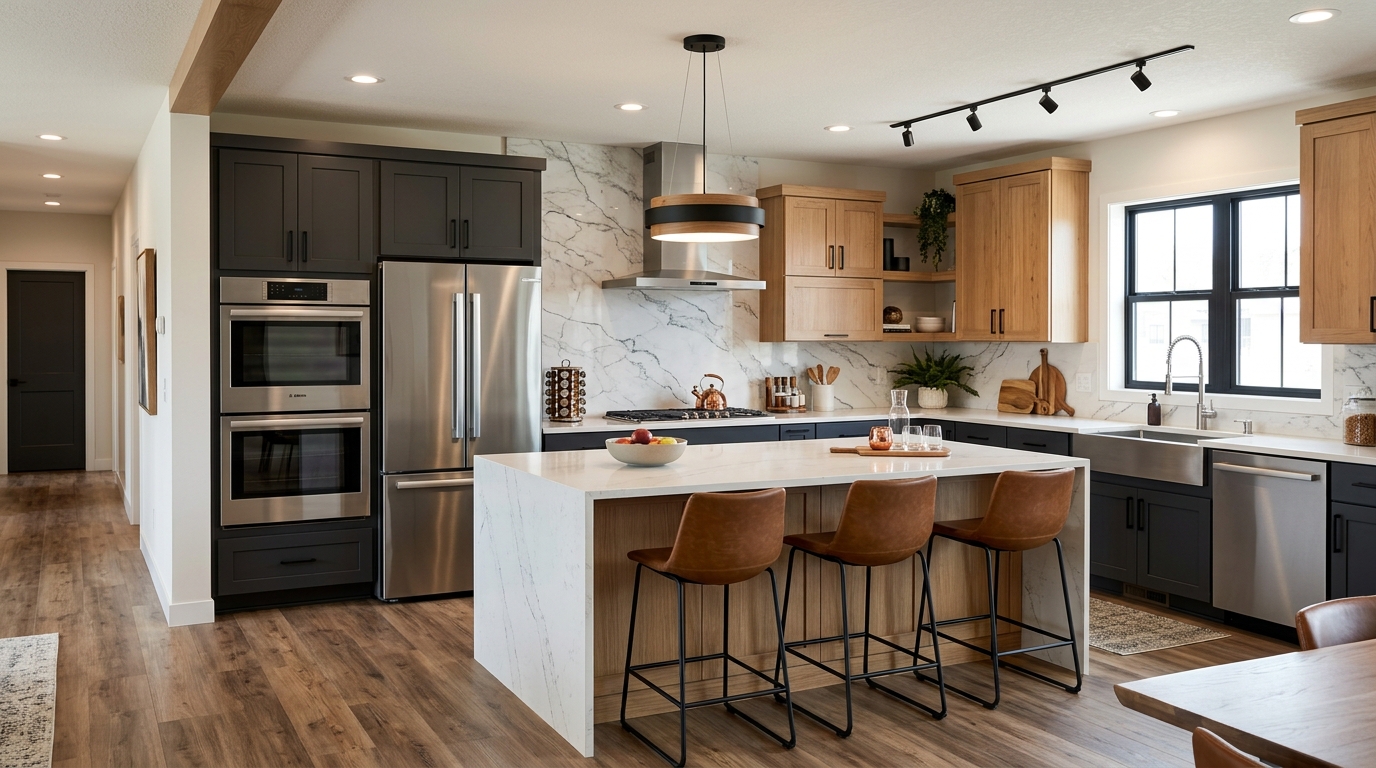

| Chef's Kitchen & Quartz Island | 16' 0" x 14' 6" | 232.0 sq ft | Quartz countertops, stainless steel appliance suite, 8ft island, custom shaker cabinets |
| Dining Room | 14' 0" x 12' 0" | 168.0 sq ft | Formal dining room opening to kitchen and living areas |

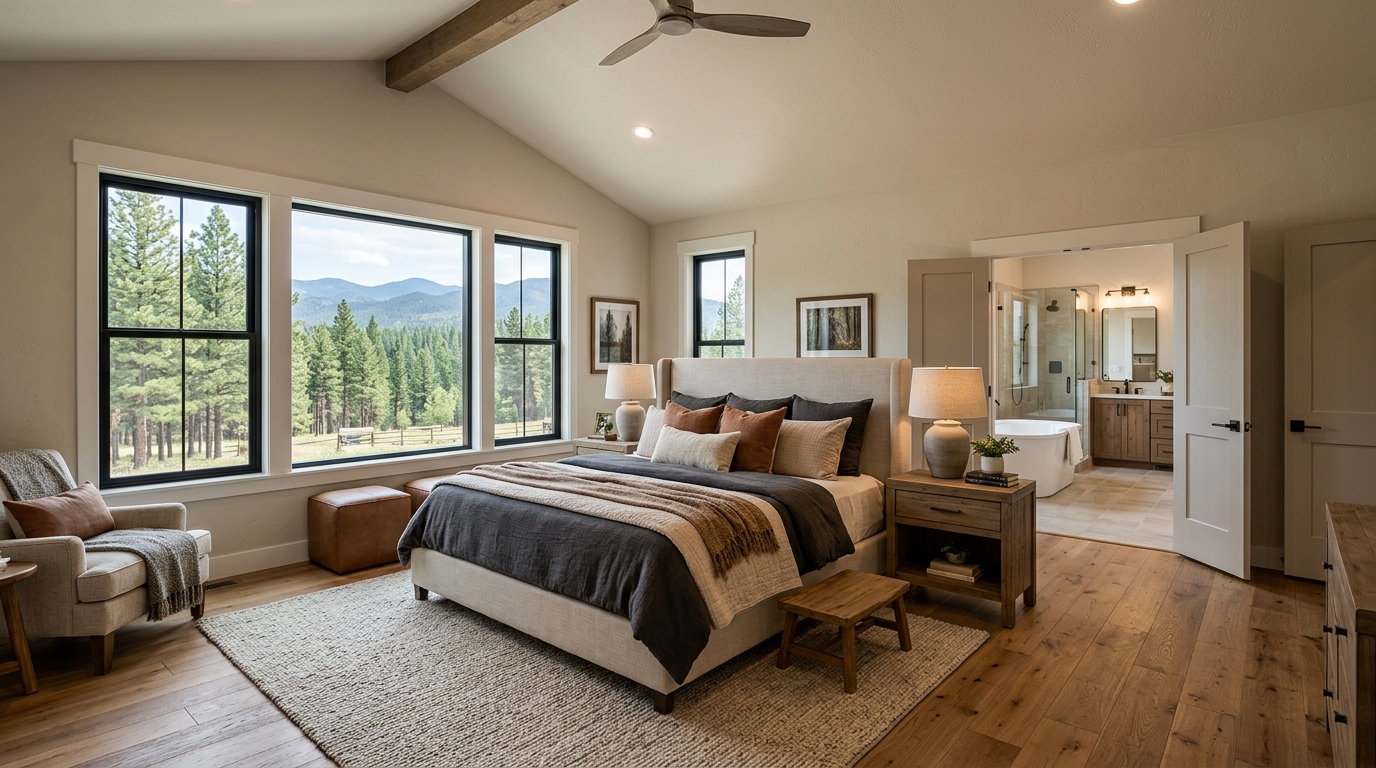

| Master Estate Suite | 15' 6" x 18' 0" | 279.0 sq ft | Palatial master bedroom with tray ceiling and recessed LED lighting |

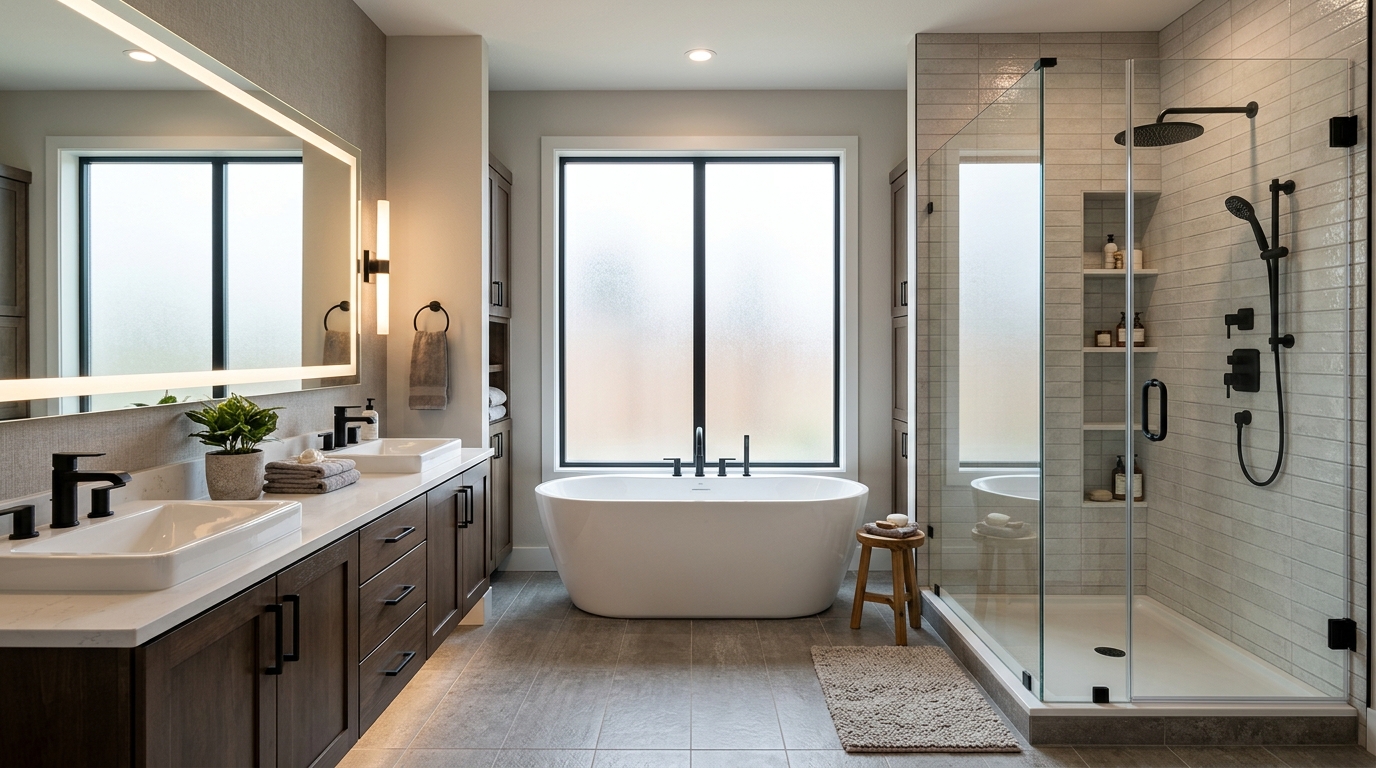

| Master Spa Bathroom | 14' 0" x 10' 6" | 147.0 sq ft | Freestanding soaking tub, frameless glass walk-in tile shower, dual quartz vanities & private commode |
| Dual Master Walk-In Closets (2x) | 7' 6" x 6' 0" (each) | 90.0 sq ft | His and Hers walk-in closets with complete shelving system |
| Bedroom 2 (Junior Suite) | 13' 6" x 12' 6" | 168.8 sq ft | Secondary suite with direct private access to Full Bathroom 2 |
| Private Bath 2 (Junior Suite) | 8' 6" x 5' 0" | 42.5 sq ft | Ensuite bathroom with tub/shower and vanity |
| Bedroom 3 | 13' 6" x 11' 6" | 155.3 sq ft | Generous bedroom with walk-in closet |
| Bedroom 4 | 13' 6" x 11' 6" | 155.3 sq ft | Fourth bedroom with large double closet |
| Guest Bathroom 3 | 8' 6" x 5' 0" | 42.5 sq ft | Third full bathroom servicing bedrooms 3 & 4 |
| Dedicated Home Office / Study | 11' 6" x 10' 6" | 120.8 sq ft | Private home office with French glass door option |
| Dedicated Laundry & Utility | 9' 6" x 7' 6" | 71.3 sq ft | Full laundry room with sink, folding counter, cabinets & rear exterior door |
| Foyers & Hallways | Circulation | 202.0 sq ft | Wide central hallways and foyers |
Financing & Deposit Calculator
Customize your down payment, loan term, and interest rate for the Monarch Estate 32x60.

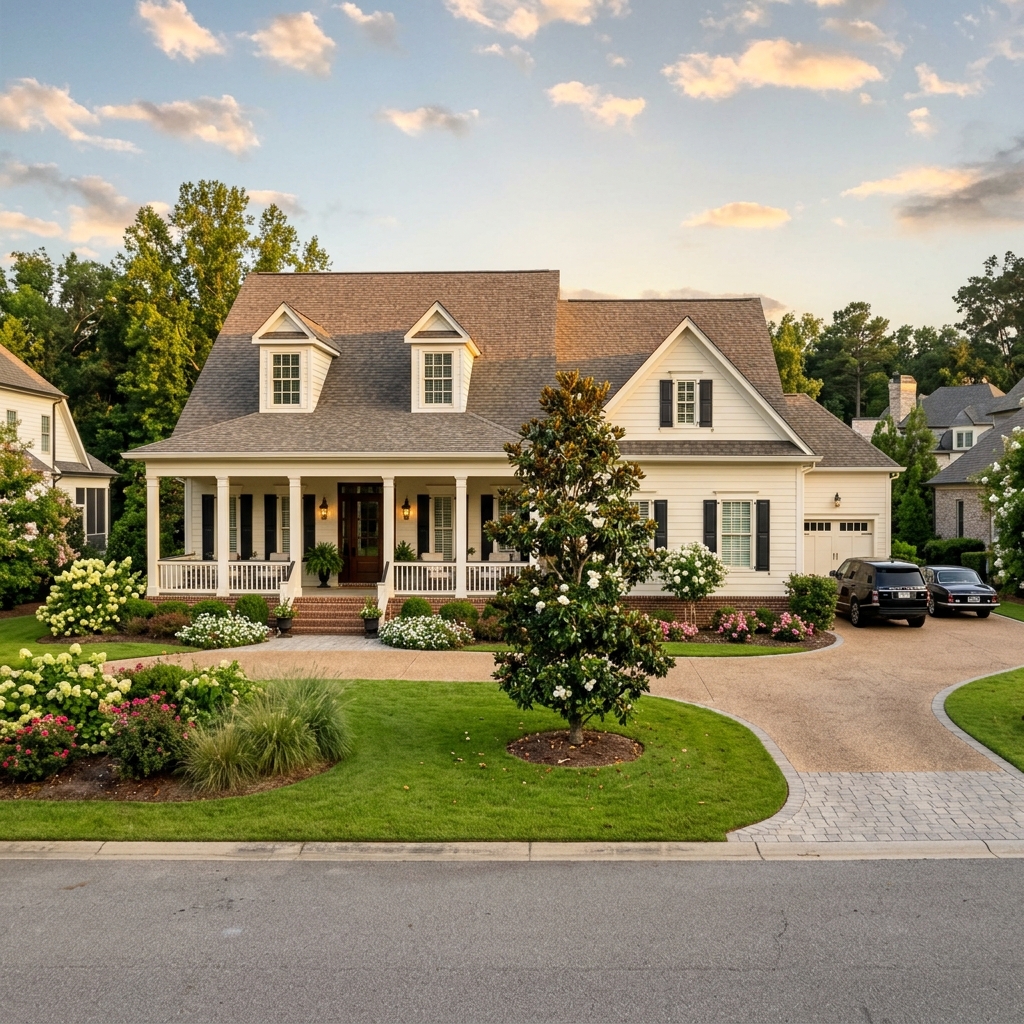

Exterior Elevations & Customization Options
Every home is custom manufactured to order. If you prefer a clean, contemporary appearance rather than a rustic cabin or traditional look, we offer multiple exterior and interior finish packages:
Clean Architectural Look
Smooth horizontal lap siding in slate grey, arctic white, or charcoal; low-profile black window frames; modern full-lite front door with frosted vertical glass inserts; optional black standing-seam metal accents.
Suburban Neighborhood Style
Horizontal vinyl siding with decorative board-and-batten gables; white window surrounds; classic louvered shutters; 6-panel fiberglass front door with transom window.
Timber & Cabin Styling
Woodgrain textured siding in cedar tones; rough-sawn cedar porch posts with black metal bracket accents; dark earth-tone architectural shingles.
Interior Finish Packages & Floor Plan Customization
- • Builder Basic: Smooth drywall ready for custom painting, durable vinyl flooring, flat-panel shaker cabinets, roll-edge laminate counters. Perfect for homeowners seeking lower cost or planning DIY cosmetic upgrades.
- • Signature Luxury: Solid quartz/granite countertops, undermount farmhouse apron sink, soft-close dovetailed cabinets, Luxury Vinyl Plank (LVP) throughout, ceramic subway tile backsplashes, and tiled walk-in master shower.
- • Custom Floor Plans: Interior non-load-bearing walls can be adjusted prior to fabrication (e.g. combining bedrooms into larger suites, shifting exterior doors, or adding sliding glass patio doors).
Engineering & Climate Specifications
| Home type | Double Wide (2-section) manufactured home |
|---|---|
| Model year | 2026 |
| Nominal transport dimensions | 32 ft × 60 ft (measured over the eaves, including the hitch) |
| Box & Finished Width | 30' 4" (Two 15' 2" extra-wide sections joined) box width | 31' 2" (transport) / 32' 0" (over eaves) over eaves |
| Transported as | 2 sections of approximately 16 ft × 60 ft |
| Floor area | 1,920 sq ft nominal (1832 sq ft finished interior) |
| Bedrooms / bathrooms | 4 bedrooms, 3 bathrooms |
| Roof Snow Load Options | Standard 20 PSF | Engineered 30 PSF (Middle Snow) & 40 PSF (Heavy Snow for Utah, Montana, Wyoming, Colorado) |
| Thermal / Insulation Zone | Zone 1/2 Standard | Thermal Zone 3 Northern Package (2x6 Walls, R-21 wall, R-38 ceiling, R-22 floor, Argon Low-E windows) |
| Construction standard | Federal HUD Code — Manufactured Home Construction and Safety Standards, 24 CFR Part 3280 |
| Foundation Compatibility | Both Pier-and-Anchor & Permanent Foundations (Crawlspace Stem Wall / Basement for FHA/VA 30-Year Real Property Financing) |
| Certification documents | 2 exterior HUD certification labels (one per section), plus the interior data plate listing wind zone, roof load zone and thermal zone |
Transport & Siting Notes for This Plan
This home travels as 2 sections of approximately 16 feet wide each. The standard legal load width on US highways is 8 feet 6 inches, so each move requires an oversize permit from every state on the route. At this width most states also require pilot or escort vehicles and restrict movement to daylight hours. Two sections means two permitted moves and two sets of escort arrangements.
At 60 feet long, turning radius matters at every corner between the highway and your pad, and the pad itself needs to be level and compacted across the full 32-foot width with working room at the perimeter. Read more about route surveys, permits and site access for delivery.
As a multi-section home, the halves are joined on site along the mating line. That wall is structural, so the pier layout beneath it follows the manufacturer's installation drawings, and the heating and cooling duct, water, drain and electrical crossovers between the halves are completed during set-up. Those crossovers should be supported, insulated and sealed before the skirting closes in.
Footings must bear on undisturbed soil at or below the local frost depth, and the finished grade should fall away from the home so surface water does not collect beneath it. See what site preparation and installation involve, or check the FAQ on zoning, permits and financing before committing to a plan.
Interested in the Monarch Estate 32x60?
Request an itemized delivered-and-installed quote for your exact property, custom floor plan modifications, or foundation engineering guidance.
