Grand Manor 28x60
$109,900
or from $642/moIncludes standard regional delivery & installation
Key Features
Size and layout. A 28x60 double-wide is not built as one 28-foot box. It leaves the plant as two 14-foot-wide sections, each 60 feet long, which are joined on site along the mating line, sometimes called the marriage line. That mating wall carries structural load, so the piers beneath it are set to the manufacturer's spacing and are part of the installation drawings supplied with the home.
Transport and siting. Two sections mean two permitted moves, two sets of oversize permits and, in most states, escort vehicles for each. Both halves have to reach the pad, so access needs to be assessed for the full length of the route, not just the last hundred feet. Budget site work for a pad that is level and compacted across the full 28-foot width plus working room at the perimeter.
Foundation and compliance. Multi-section homes can sit on an engineered pier-and-anchor system or on a permanent perimeter foundation. The choice matters beyond engineering: mortgage products that treat the home as real property generally require a permanent foundation and land you own. Each of the two sections carries its own HUD certification label, and the data plate inside the home records the wind zone, roof load zone and thermal zone the unit was designed for.
Room Dimensions & Layout Schedule
| Room / Area | Dimensions (L × W) | Area (Sq Ft) | Features & Inclusions |
|---|---|---|---|

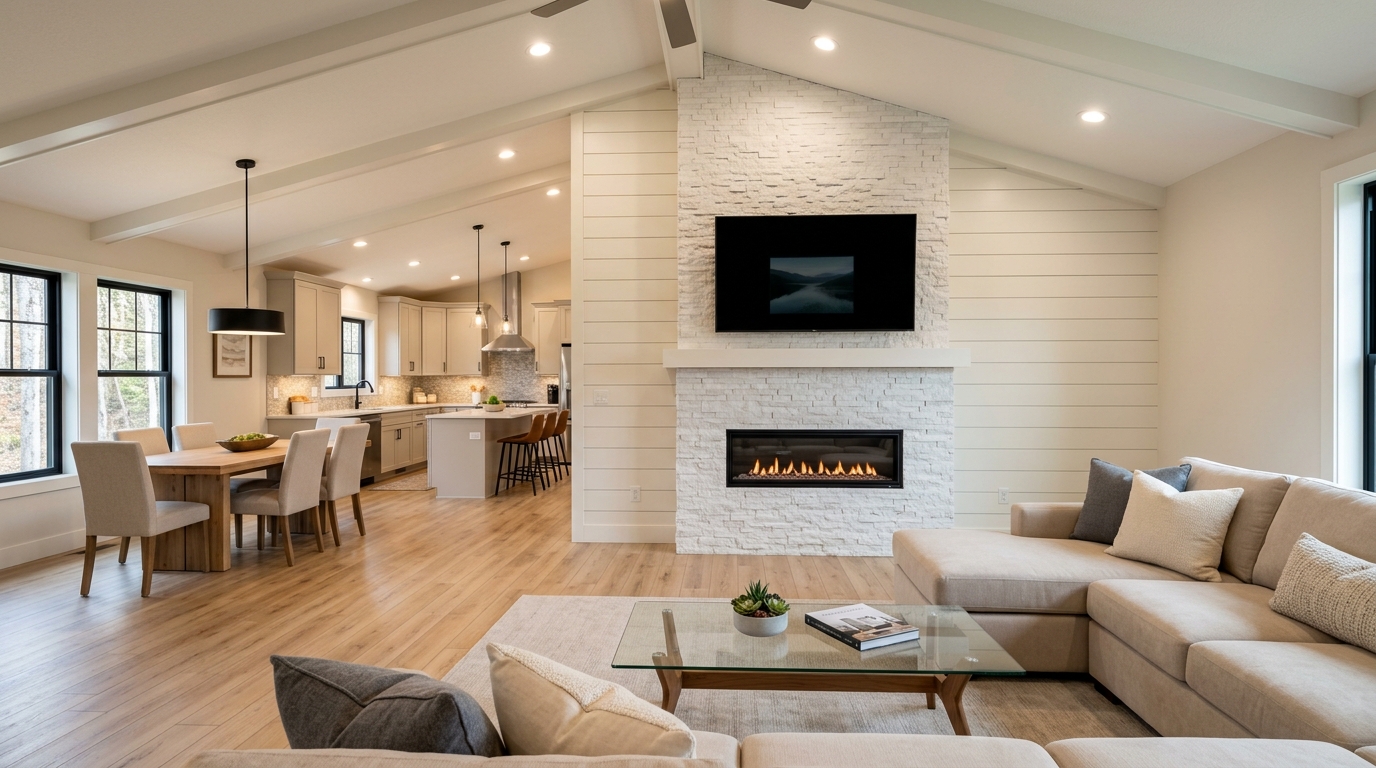

| Great Room (Vaulted) | 20' 6" x 16' 0" | 328.0 sq ft | Vaulted ceiling, built-in electric fireplace and media wall |

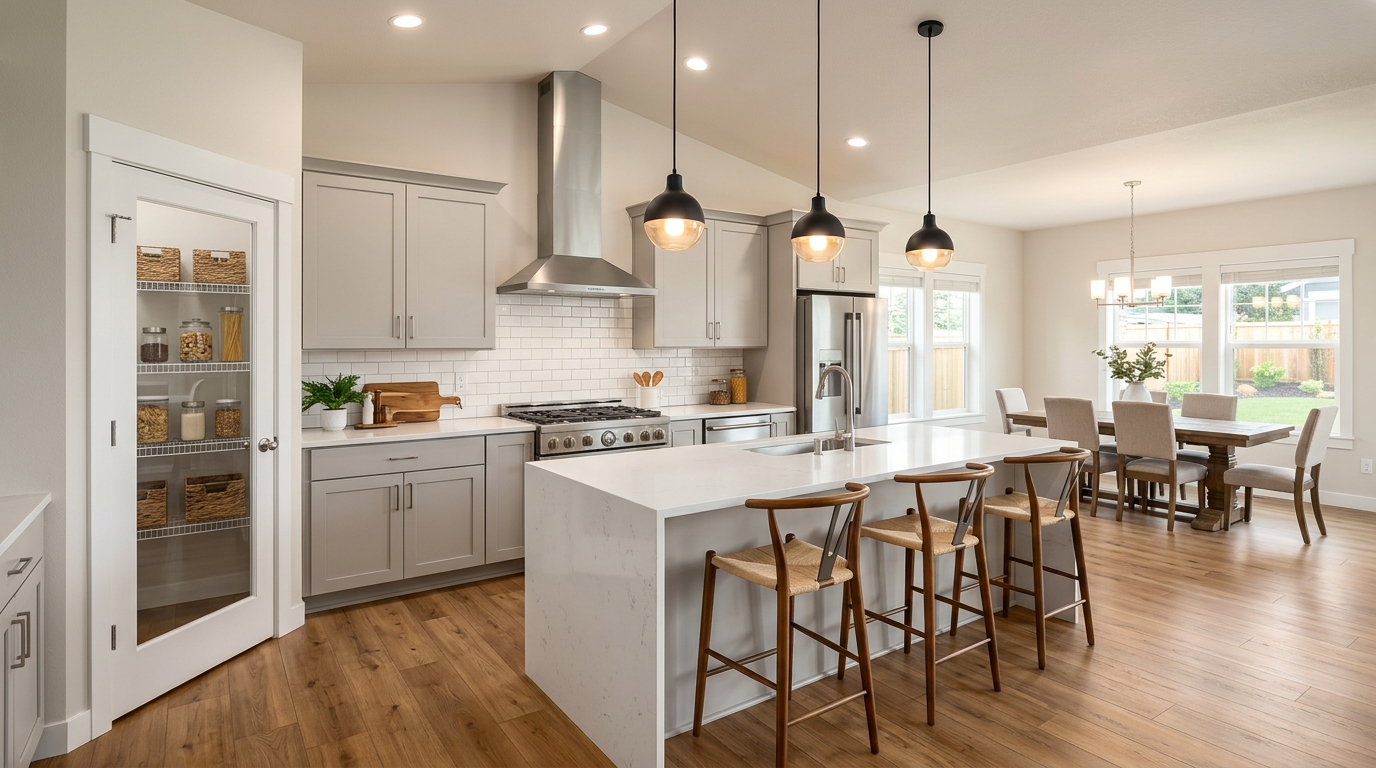

| Gourmet Kitchen & Island | 15' 6" x 14' 0" | 217.0 sq ft | Chef kitchen with oversized island, bar seating, premium cabinetry |
| Walk-In Pantry | 6' 0" x 4' 6" | 27.0 sq ft | Dedicated step-in pantry with 5-tier wrap shelves |
| Dining Area | 13' 0" x 10' 6" | 136.5 sq ft | Spacious open dining area with chandelier fixture |

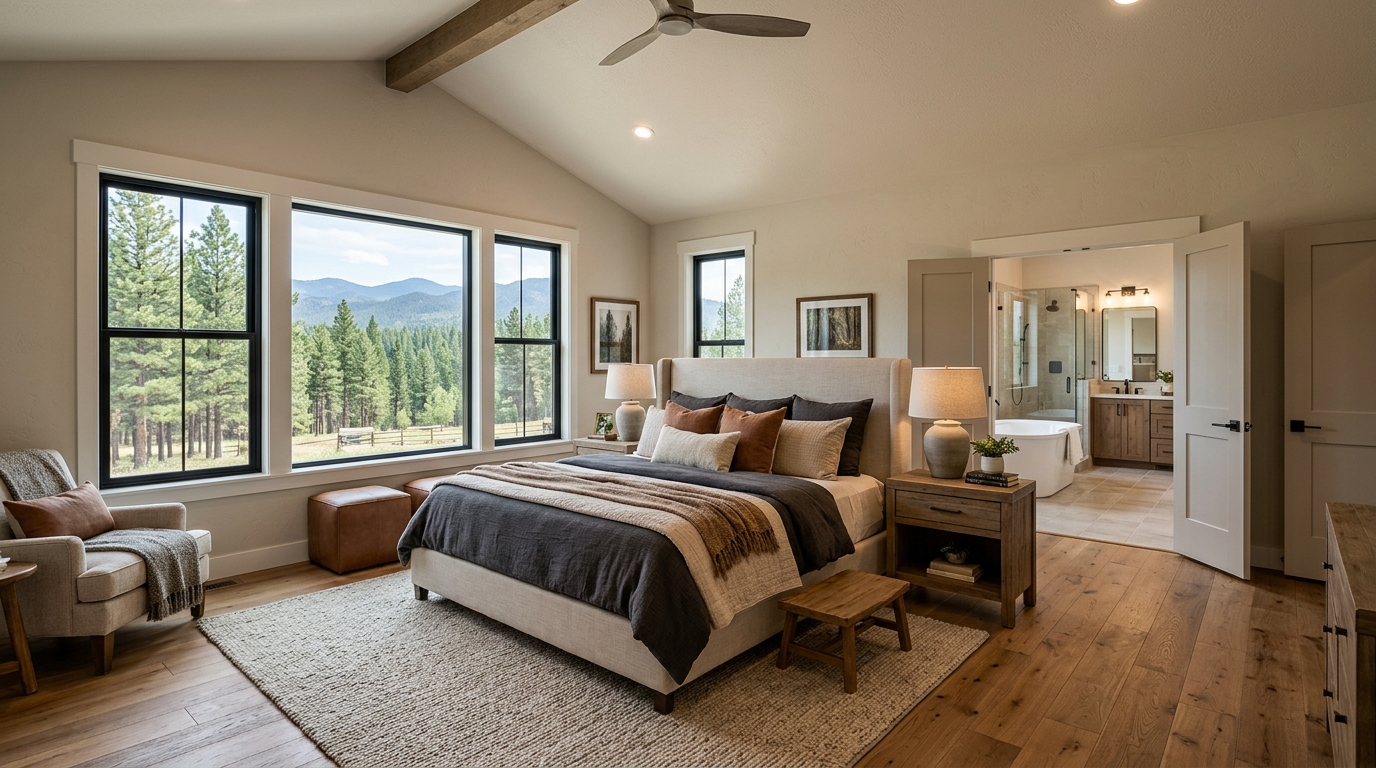

| Master Suite | 13' 8" x 16' 6" | 225.5 sq ft | Secluded master suite in private wing |

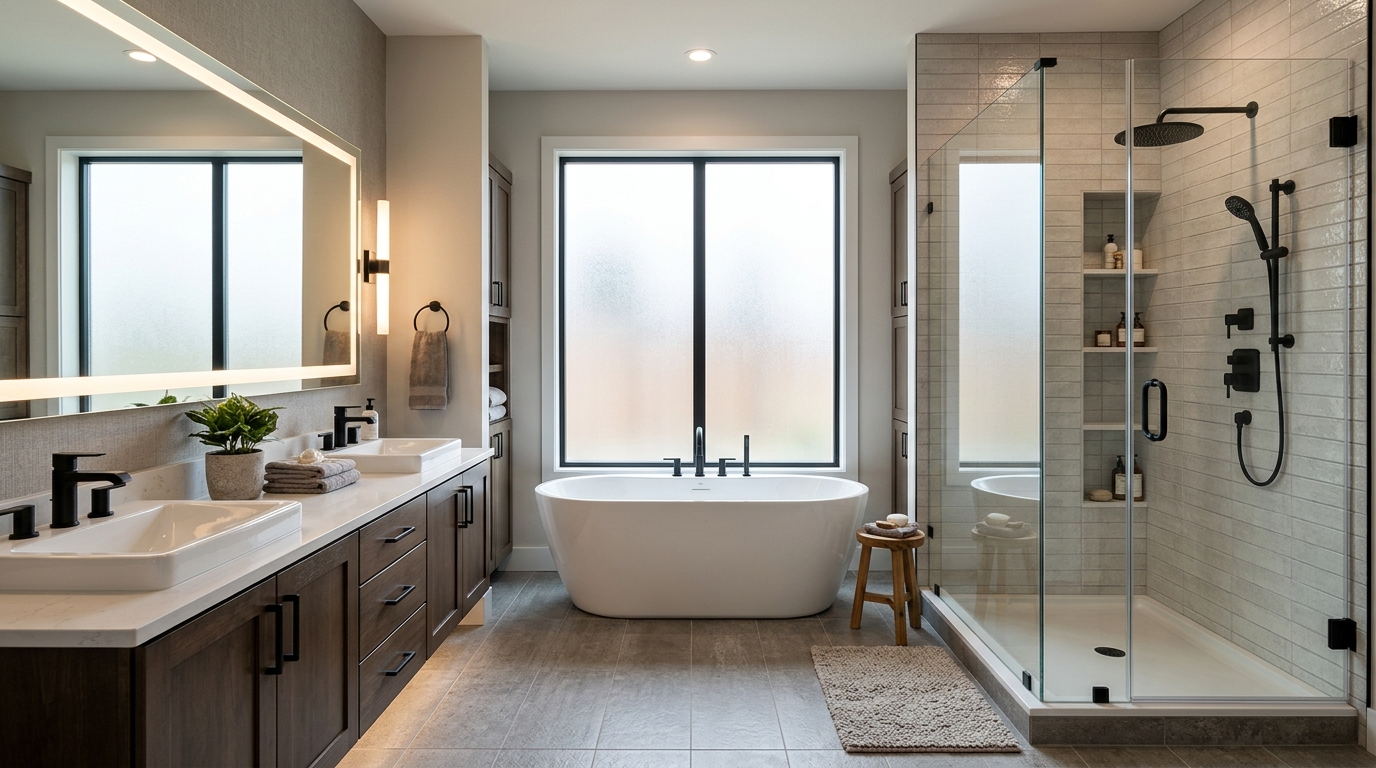

| Master Dual-Vanity Bath | 11' 6" x 9' 6" | 109.3 sq ft | Dual vanities, freestanding soaking tub, 60-inch walk-in shower & water closet |
| Master Walk-In Closet | 9' 6" x 7' 0" | 66.5 sq ft | Oversized luxury walk-in wardrobe closet |
| Bedroom 2 | 11' 6" x 11' 6" | 132.3 sq ft | Secondary bedroom with walk-in closet |
| Bedroom 3 | 11' 6" x 11' 6" | 132.3 sq ft | Third bedroom with large double closet |
| Bedroom 4 | 11' 6" x 10' 6" | 120.8 sq ft | Fourth bedroom / office with closet |
| Guest Bathroom 2 | 8' 6" x 5' 6" | 46.8 sq ft | Full secondary bathroom with tub/shower and dual sinks |
| Powder Room (Half Bath) | 5' 6" x 5' 0" | 27.5 sq ft | Convenient guest powder bath off main living area |
| Dedicated Laundry Room | 9' 6" x 6' 6" | 61.8 sq ft | Full laundry room with folding counter & exterior access |
| Foyer & Hallways | Circulation | 163.7 sq ft | Formal entry foyer and bedroom wings |
Financing & Deposit Calculator
Customize your down payment, loan term, and interest rate for the Grand Manor 28x60.

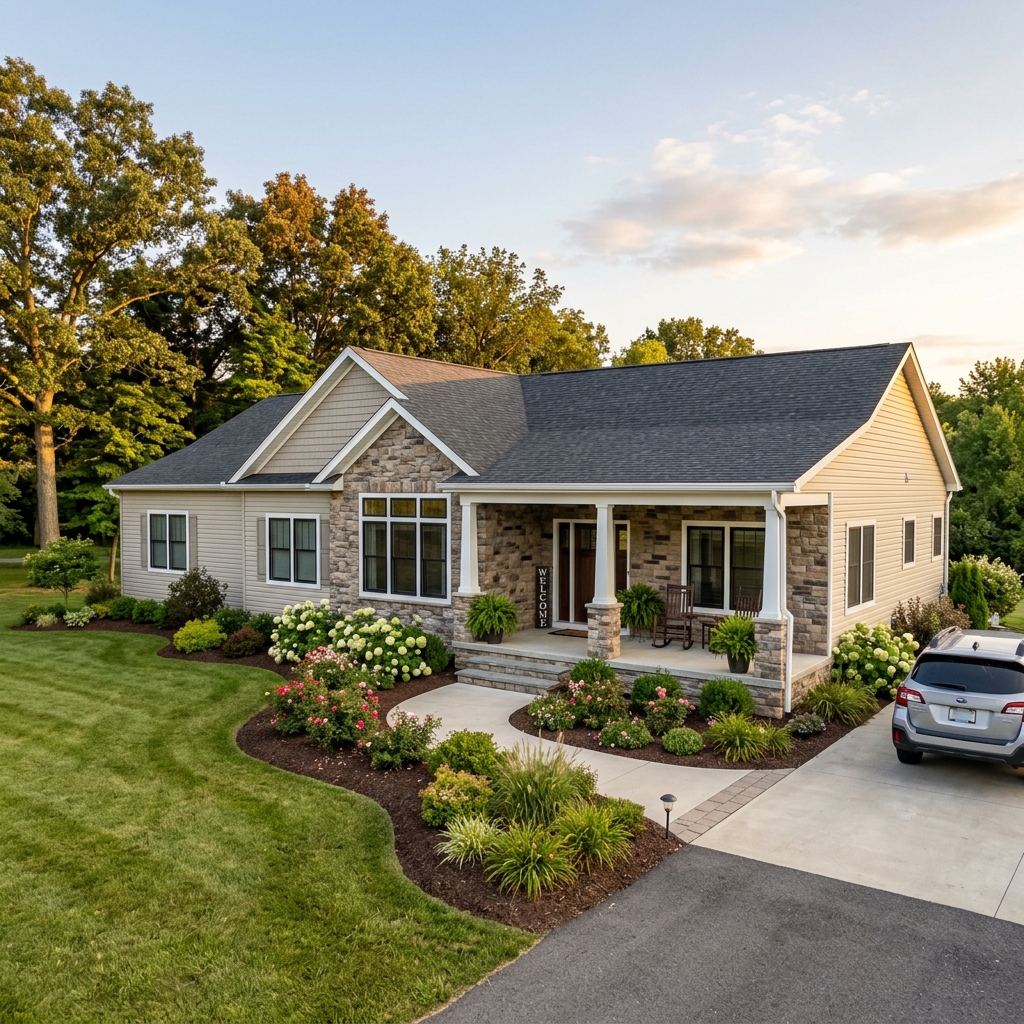

Exterior Elevations & Customization Options
Every home is custom manufactured to order. If you prefer a clean, contemporary appearance rather than a rustic cabin or traditional look, we offer multiple exterior and interior finish packages:
Clean Architectural Look
Smooth horizontal lap siding in slate grey, arctic white, or charcoal; low-profile black window frames; modern full-lite front door with frosted vertical glass inserts; optional black standing-seam metal accents.
Suburban Neighborhood Style
Horizontal vinyl siding with decorative board-and-batten gables; white window surrounds; classic louvered shutters; 6-panel fiberglass front door with transom window.
Timber & Cabin Styling
Woodgrain textured siding in cedar tones; rough-sawn cedar porch posts with black metal bracket accents; dark earth-tone architectural shingles.
Interior Finish Packages & Floor Plan Customization
- • Builder Basic: Smooth drywall ready for custom painting, durable vinyl flooring, flat-panel shaker cabinets, roll-edge laminate counters. Perfect for homeowners seeking lower cost or planning DIY cosmetic upgrades.
- • Signature Luxury: Solid quartz/granite countertops, undermount farmhouse apron sink, soft-close dovetailed cabinets, Luxury Vinyl Plank (LVP) throughout, ceramic subway tile backsplashes, and tiled walk-in master shower.
- • Custom Floor Plans: Interior non-load-bearing walls can be adjusted prior to fabrication (e.g. combining bedrooms into larger suites, shifting exterior doors, or adding sliding glass patio doors).
Engineering & Climate Specifications
| Home type | Double Wide (2-section) manufactured home |
|---|---|
| Model year | 2026 |
| Nominal transport dimensions | 28 ft × 60 ft (measured over the eaves, including the hitch) |
| Box & Finished Width | 27' 4" (Two 13' 8" sections joined) box width | 28' 0" over eaves |
| Transported as | 2 sections of approximately 14 ft × 60 ft |
| Floor area | 1,680 sq ft nominal (1595 sq ft finished interior) |
| Bedrooms / bathrooms | 4 bedrooms, 2.5 bathrooms |
| Roof Snow Load Options | Standard 20 PSF | Engineered 30 PSF (Middle Snow) & 40 PSF (Heavy Snow for Utah, Montana, Wyoming, Colorado) |
| Thermal / Insulation Zone | Zone 1/2 Standard | Thermal Zone 3 Northern Package (2x6 Walls, R-21 wall, R-38 ceiling, R-22 floor, Argon Low-E windows) |
| Construction standard | Federal HUD Code — Manufactured Home Construction and Safety Standards, 24 CFR Part 3280 |
| Foundation Compatibility | Both Pier-and-Anchor & Permanent Foundations (Crawlspace Stem Wall / Basement for FHA/VA 30-Year Real Property Financing) |
| Certification documents | 2 exterior HUD certification labels (one per section), plus the interior data plate listing wind zone, roof load zone and thermal zone |
Transport & Siting Notes for This Plan
This home travels as 2 sections of approximately 14 feet wide each. The standard legal load width on US highways is 8 feet 6 inches, so each move requires an oversize permit from every state on the route. At this width most states also require pilot or escort vehicles and restrict movement to daylight hours. Two sections means two permitted moves and two sets of escort arrangements.
At 60 feet long, turning radius matters at every corner between the highway and your pad, and the pad itself needs to be level and compacted across the full 28-foot width with working room at the perimeter. Read more about route surveys, permits and site access for delivery.
As a multi-section home, the halves are joined on site along the mating line. That wall is structural, so the pier layout beneath it follows the manufacturer's installation drawings, and the heating and cooling duct, water, drain and electrical crossovers between the halves are completed during set-up. Those crossovers should be supported, insulated and sealed before the skirting closes in.
Footings must bear on undisturbed soil at or below the local frost depth, and the finished grade should fall away from the home so surface water does not collect beneath it. See what site preparation and installation involve, or check the FAQ on zoning, permits and financing before committing to a plan.
Interested in the Grand Manor 28x60?
Request an itemized delivered-and-installed quote for your exact property, custom floor plan modifications, or foundation engineering guidance.
