Heritage Classic 28x56
$94,500
or from $552/moIncludes standard regional delivery & installation
Key Features
Size and layout. The nominal 1,568 sq ft comes from 28 feet by 56 feet. The home is built as two 14-by-56 sections that are transported separately and joined on site at the mating line. Because the mating wall is structural, the ridge beam connection, close-up and the pier layout beneath that wall follow the manufacturer's installation instructions supplied with the home.
Utility crossovers. Every multi-section home has crossover connections that are only completed during set-up: heating and cooling ducts, water supply and drain lines, and the electrical crossover between halves. These are a common source of first-winter complaints when they are left unsupported, uninsulated or unsealed, so they are worth inspecting before the skirting goes on.
Transport and siting. Two 14-foot-wide loads need oversize permits in every state on the route and, in most states, escort vehicles. Plan for a pad that is level and compacted across the full 28-foot width with working room at the perimeter, and for site drainage that carries water away from the home rather than under it.
Compliance. Each section carries its own HUD certification label on the exterior. The data plate inside records the wind zone, roof load zone and thermal zone this unit was built to.
Room Dimensions & Layout Schedule
| Room / Area | Dimensions (L × W) | Area (Sq Ft) | Features & Inclusions |
|---|---|---|---|

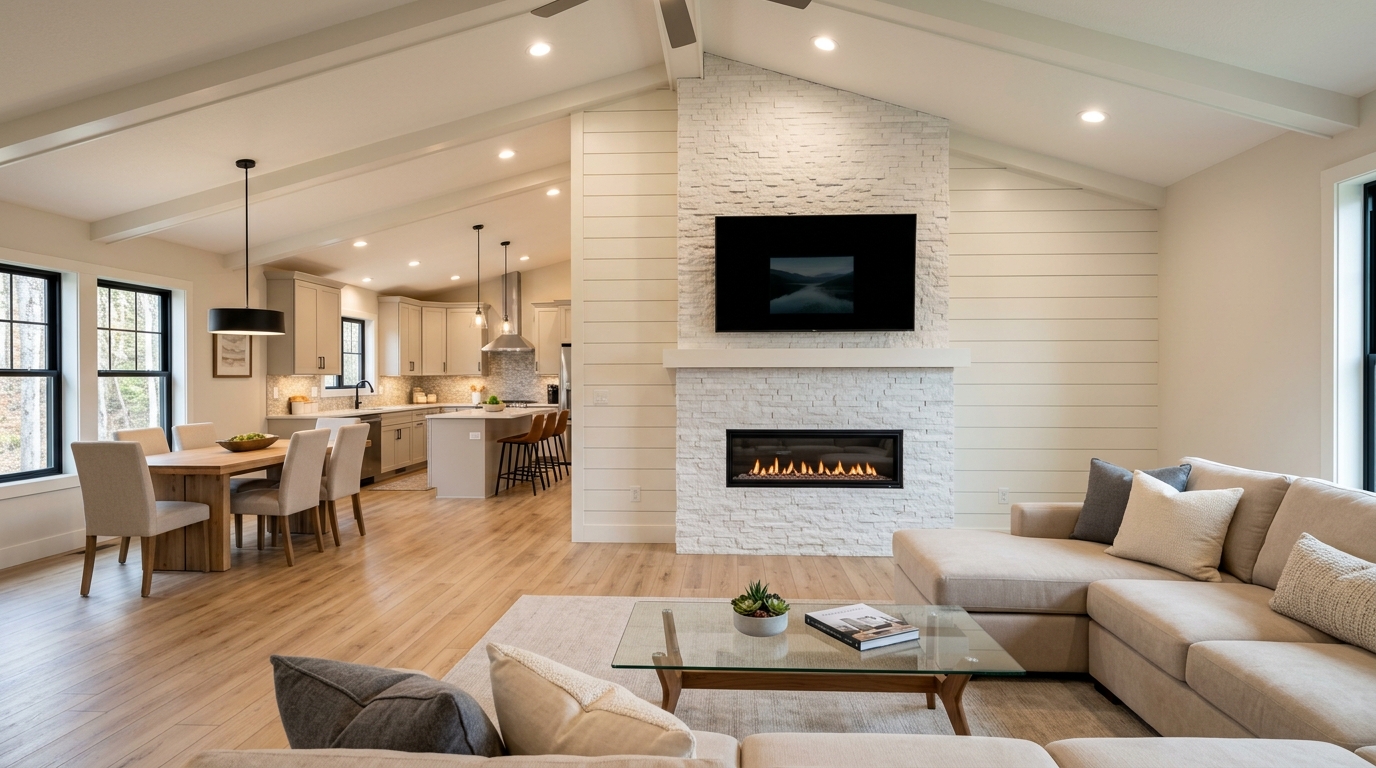

| Formal Living Room | 18' 6" x 15' 0" | 277.5 sq ft | Crown molding, large multi-pane windows and open archway |
| Formal Dining Area | 12' 6" x 10' 6" | 131.3 sq ft | Dedicated dining area connecting to kitchen |

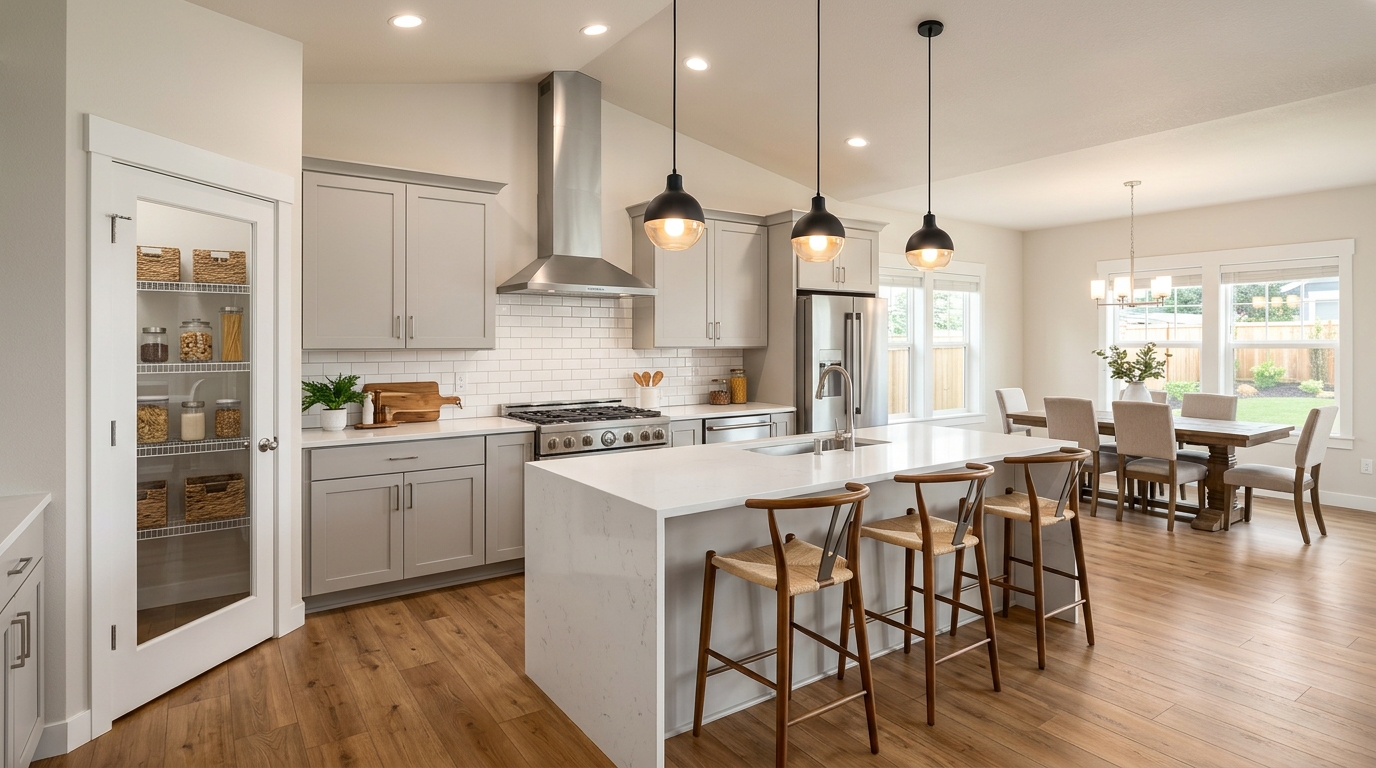

| Gourmet Kitchen | 13' 6" x 12' 6" | 168.8 sq ft | Upgraded hardwood cabinetry, center prep bar & walk-in pantry |

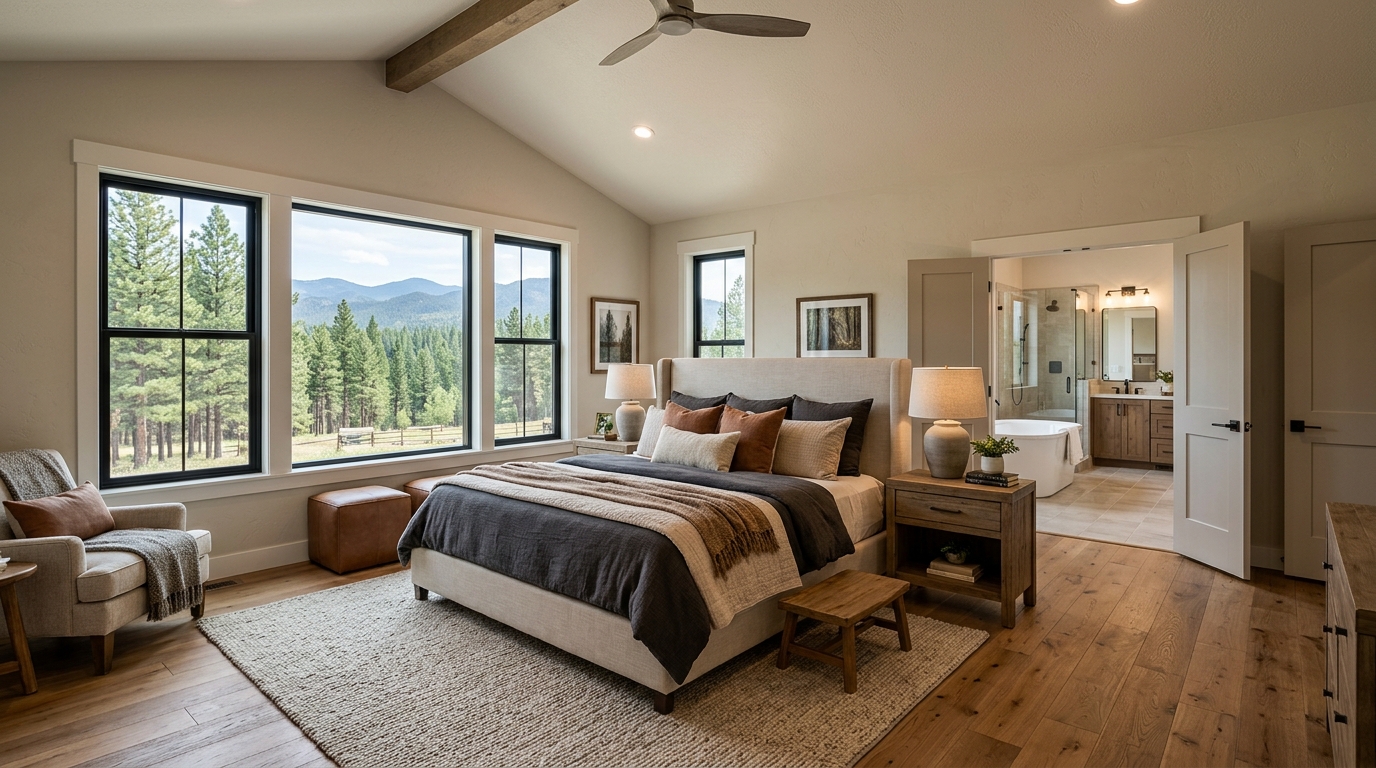

| Master Suite | 13' 8" x 15' 6" | 211.8 sq ft | Private master suite with tray ceiling accents |

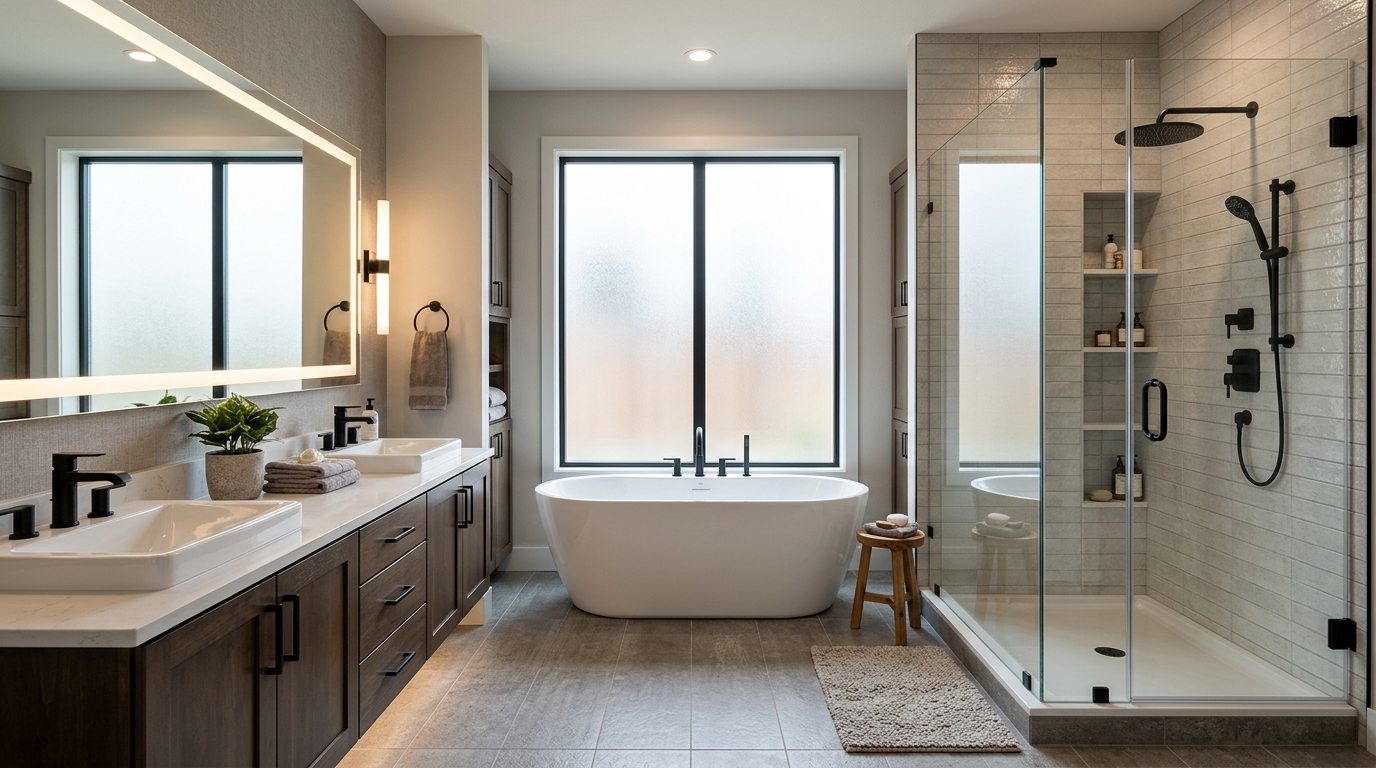

| Master Glamour Bath | 12' 6" x 9' 0" | 112.5 sq ft | Oval soaker tub, separate 48-inch shower, dual sink vanity & linen tower |
| Master Walk-In Closet | 9' 0" x 6' 0" | 54.0 sq ft | Full dressing room closet with extensive shelving |
| Bedroom 2 | 12' 4" x 11' 6" | 141.8 sq ft | Secondary bedroom with large walk-in closet |
| Bedroom 3 | 12' 4" x 11' 6" | 141.8 sq ft | Third bedroom with double closet |
| Guest Bathroom 2 | 8' 6" x 5' 0" | 42.5 sq ft | Full bath with fiberglass tub/shower and oak vanity |
| Utility / Laundry Room | 9' 0" x 7' 6" | 67.5 sq ft | Pre-plumbed for sink, washer/dryer hookups & exterior access |
| Foyer & Hallways | Circulation | 135.5 sq ft | Welcoming entry foyer with coat closet |
Financing & Deposit Calculator
Customize your down payment, loan term, and interest rate for the Heritage Classic 28x56.

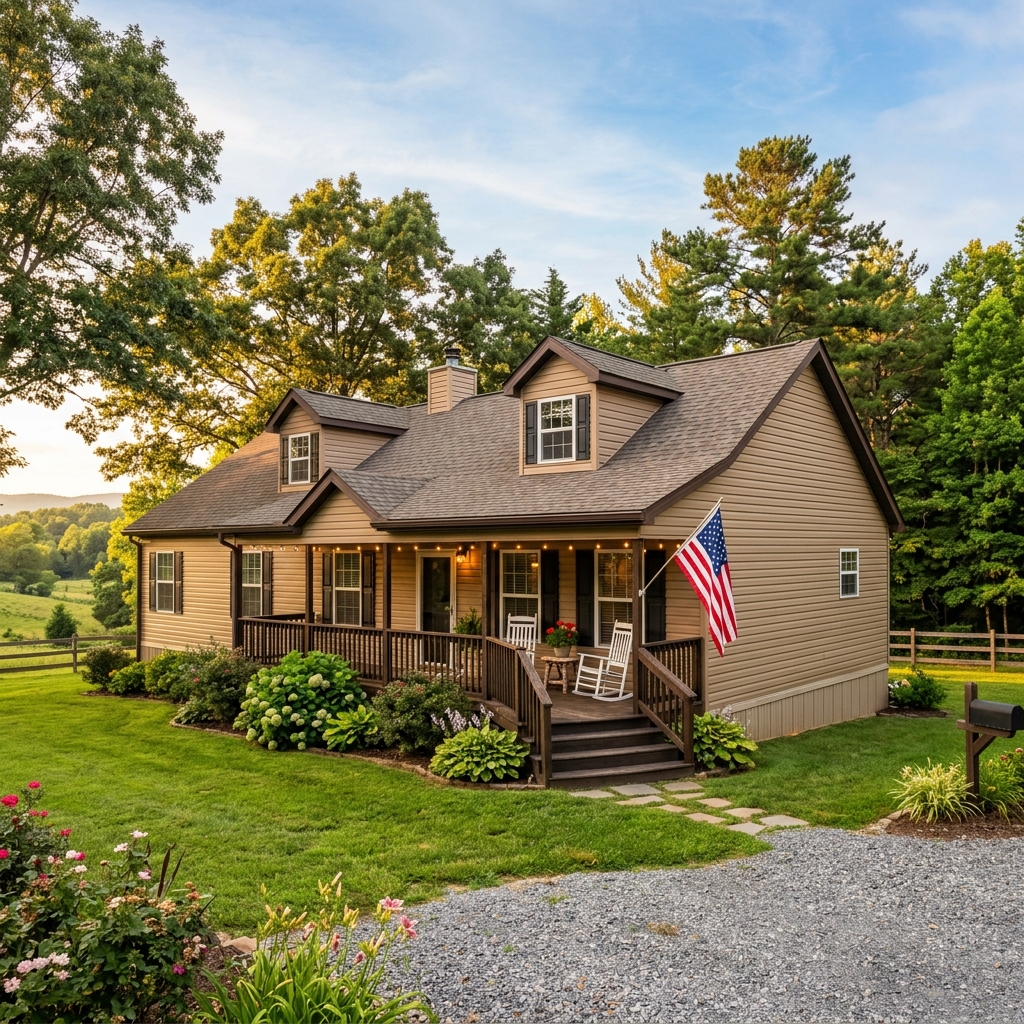

Exterior Elevations & Customization Options
Every home is custom manufactured to order. If you prefer a clean, contemporary appearance rather than a rustic cabin or traditional look, we offer multiple exterior and interior finish packages:
Clean Architectural Look
Smooth horizontal lap siding in slate grey, arctic white, or charcoal; low-profile black window frames; modern full-lite front door with frosted vertical glass inserts; optional black standing-seam metal accents.
Suburban Neighborhood Style
Horizontal vinyl siding with decorative board-and-batten gables; white window surrounds; classic louvered shutters; 6-panel fiberglass front door with transom window.
Timber & Cabin Styling
Woodgrain textured siding in cedar tones; rough-sawn cedar porch posts with black metal bracket accents; dark earth-tone architectural shingles.
Interior Finish Packages & Floor Plan Customization
- • Builder Basic: Smooth drywall ready for custom painting, durable vinyl flooring, flat-panel shaker cabinets, roll-edge laminate counters. Perfect for homeowners seeking lower cost or planning DIY cosmetic upgrades.
- • Signature Luxury: Solid quartz/granite countertops, undermount farmhouse apron sink, soft-close dovetailed cabinets, Luxury Vinyl Plank (LVP) throughout, ceramic subway tile backsplashes, and tiled walk-in master shower.
- • Custom Floor Plans: Interior non-load-bearing walls can be adjusted prior to fabrication (e.g. combining bedrooms into larger suites, shifting exterior doors, or adding sliding glass patio doors).
Engineering & Climate Specifications
| Home type | Double Wide (2-section) manufactured home |
|---|---|
| Model year | 2026 |
| Nominal transport dimensions | 28 ft × 56 ft (measured over the eaves, including the hitch) |
| Box & Finished Width | 27' 4" (Two 13' 8" sections joined) box width | 28' 0" over eaves |
| Transported as | 2 sections of approximately 14 ft × 56 ft |
| Floor area | 1,568 sq ft nominal (1485 sq ft finished interior) |
| Bedrooms / bathrooms | 3 bedrooms, 2 bathrooms |
| Roof Snow Load Options | Standard 20 PSF | Engineered 30 PSF (Middle Snow) & 40 PSF (Heavy Snow for Utah, Montana, Wyoming, Colorado) |
| Thermal / Insulation Zone | Zone 1/2 Standard | Thermal Zone 3 Northern Package (2x6 Walls, R-21 wall, R-38 ceiling, R-22 floor, Argon Low-E windows) |
| Construction standard | Federal HUD Code — Manufactured Home Construction and Safety Standards, 24 CFR Part 3280 |
| Foundation Compatibility | Both Pier-and-Anchor & Permanent Foundations (Crawlspace Stem Wall / Basement for FHA/VA 30-Year Real Property Financing) |
| Certification documents | 2 exterior HUD certification labels (one per section), plus the interior data plate listing wind zone, roof load zone and thermal zone |
Transport & Siting Notes for This Plan
This home travels as 2 sections of approximately 14 feet wide each. The standard legal load width on US highways is 8 feet 6 inches, so each move requires an oversize permit from every state on the route. At this width most states also require pilot or escort vehicles and restrict movement to daylight hours. Two sections means two permitted moves and two sets of escort arrangements.
At 56 feet long, turning radius matters at every corner between the highway and your pad, and the pad itself needs to be level and compacted across the full 28-foot width with working room at the perimeter. Read more about route surveys, permits and site access for delivery.
As a multi-section home, the halves are joined on site along the mating line. That wall is structural, so the pier layout beneath it follows the manufacturer's installation drawings, and the heating and cooling duct, water, drain and electrical crossovers between the halves are completed during set-up. Those crossovers should be supported, insulated and sealed before the skirting closes in.
Footings must bear on undisturbed soil at or below the local frost depth, and the finished grade should fall away from the home so surface water does not collect beneath it. See what site preparation and installation involve, or check the FAQ on zoning, permits and financing before committing to a plan.
Interested in the Heritage Classic 28x56?
Request an itemized delivered-and-installed quote for your exact property, custom floor plan modifications, or foundation engineering guidance.
